AL-MEISTER ALM3220 Instruction Manual
22
4. INITIAL THREADING OF THE ALM3220 (cont’d)

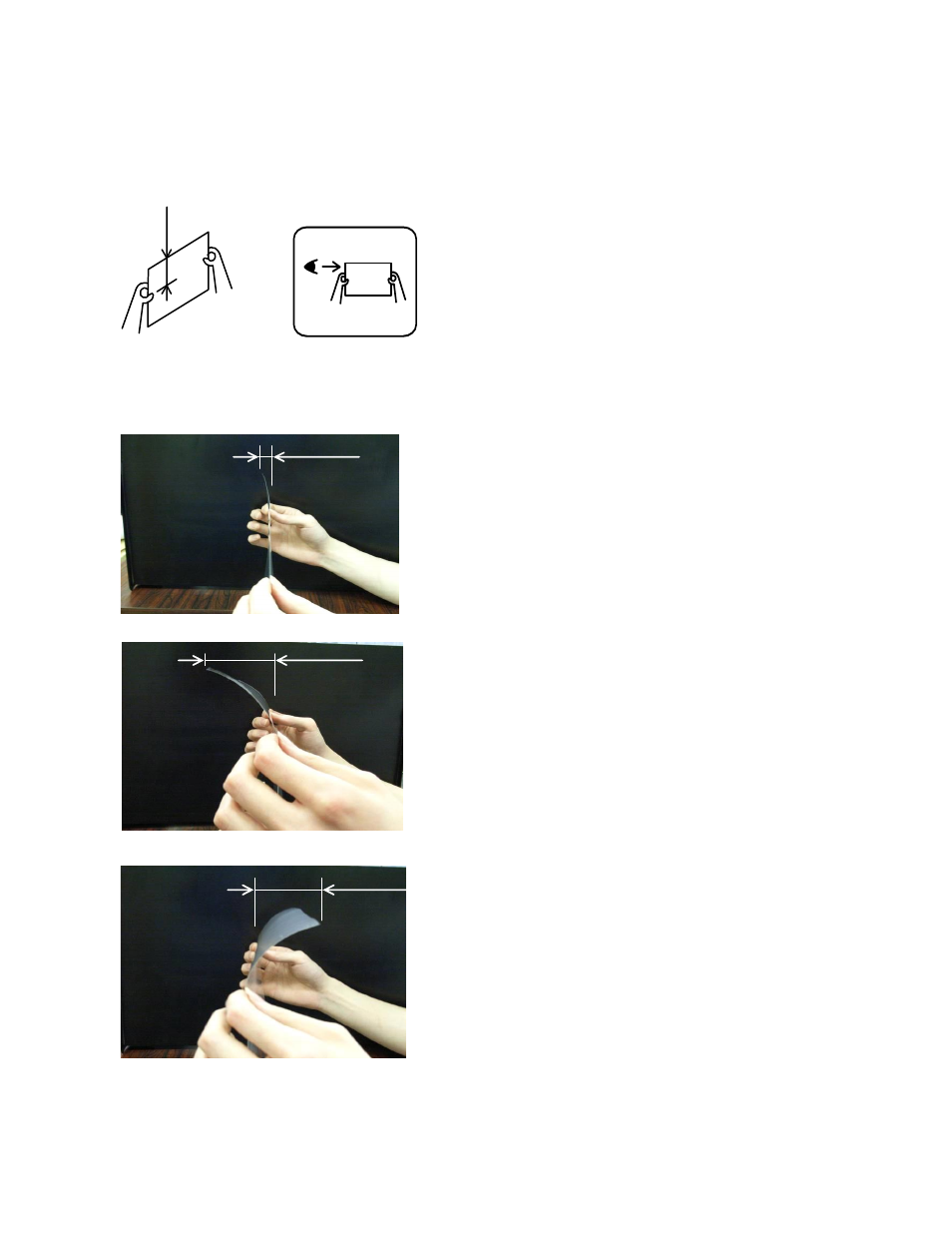

19. Hold the film vertically about 2 inches from the cut side. Look at the film from the side.
•If the curl is less than 1/2'' from the vertical plane, there is
no need to adjust.
•If the curl is more than 1/2" to the lower side, tighten the
two upper tension controllers with half turn.
•If the curl is more than 1/2" to the upper side, loosen the
two upper tension controllers with half turn.
1
.
9
7
i
n
Within 1/2 inch
1/2inches
Upper side Lower side
Over 1/2 inch
Lower side
Over 1/2 in.
Upper side
