2004 Bay Collection
Owner’s Manual
iWatch Perimeter Lighting
The iWatch is a “multi-featured” Status and Perimeter Lighting System. It is installed on the side panel of the
spa skirt to provide spa status information and colorful perimeter lighting. Using the optional D1 Remote
Control, you can control the iWatch perimeter lighting and basic spa functions.

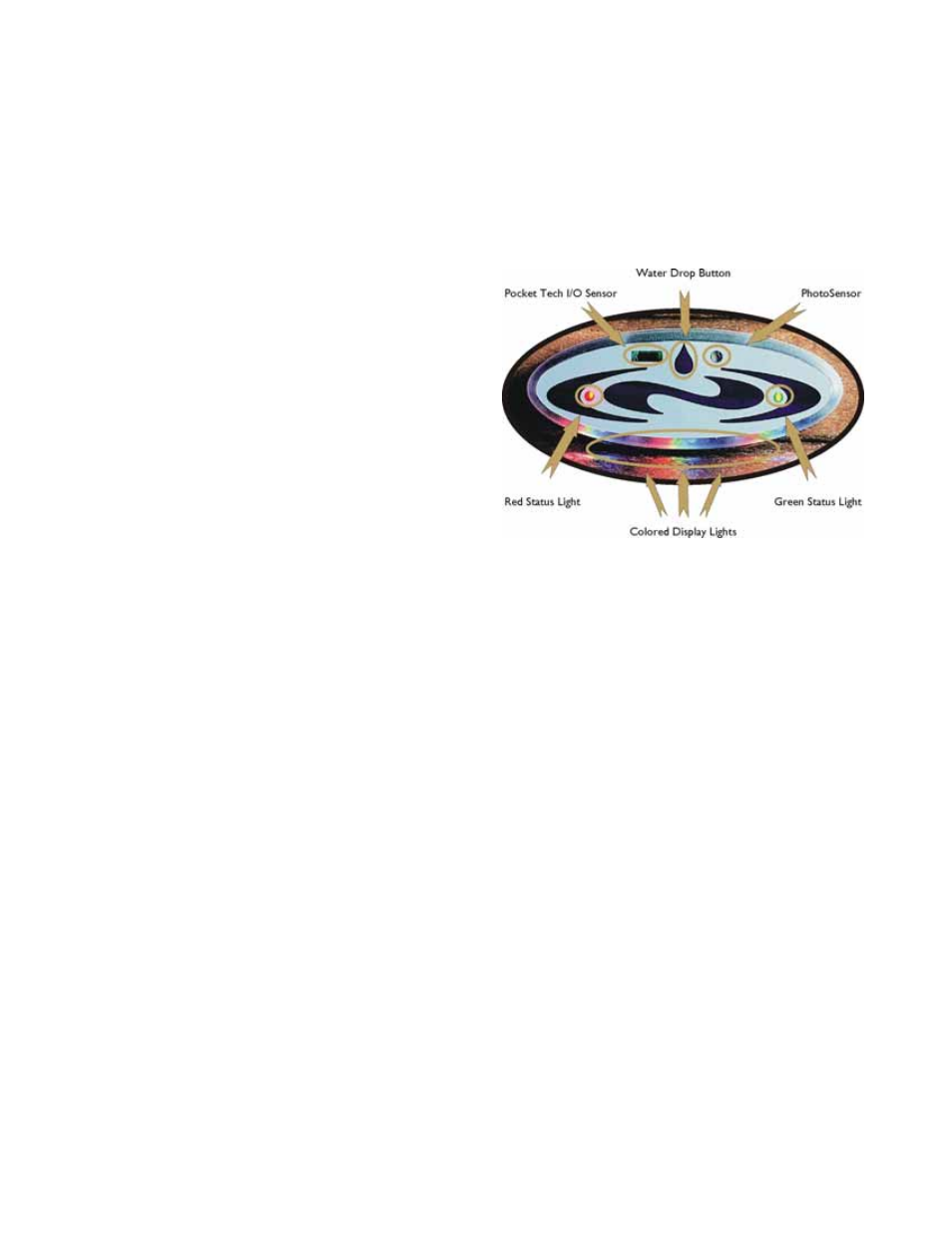

The iWatch Master Control Module provides:
• Green Status Light to indicate the spa is
functioning normally (steady green), or
requires scheduled maintenance (flashing
green)
• Red Status Light to indicate the spa requires
service
• 9 colorful LED lights (3 Red, 3 Green, and 3
Blue) to provide perimeter lighting
• Push button control of perimeter lighting
• Connection for up to three optional Auxiliary
Modules to provide additional perimeter
lighting
• Photo sensor for automatically activating the
perimeter lighting at night and deactivating it at sunrise.
• Palm pilot infrared interface port
• Receiver sensor for the IRMT-4 Remote Control device
The iWatch Master Control Module is capable of supporting up to three Auxiliary Modules to provide
additional skirt lighting on as many additional sides as desired.
In addition, the iWatch Master Control Module provides infrared support for optional Palm Pilot and
Remote Control access. These items are available from your local Dimension One Spas Inc. dealer.
Water Drop Button
The “Water Drop Button” is used to control the perimeter lighting. Pressing it causes the perimeter lighting
to step through various lighting sequences.
Photo Sensor
A sensor mounted in the module senses the outside light. When it is dark, the perimeter light will be turned
on. The perimeter light will be turned off when it is light.
Green Status Light
This light is always “ON” and indicates that the spa has power. A flashing Green Status Light indicates that the
spa requires scheduled maintenance. The Scrolling Message Center will tell you what maintenance activity is
required. If the Green Status Light continues to flash after you have performed the scheduled maintenance,
you should call your dealer.
Red Status Light
The Red Status Light will be “OFF” when the spa is functioning normally. When service is required, this light is
turned “ON” and produces a solid RED light. Contact your local Dimension One Spas dealer to obtain
service.
