Factory default switch settings, Factory default switch settings –2, Figure 4–1 – Altera Signal Integrity Development Kit, Stratix V GX Edition User Manual

Page 14: Shows the, Switch 1 has the following options, Open = vccrt_gxb select at 0.90 v, Switch 2 has the following options, Open = vcca_gxb select at 2.5 v, Close = vcca_gxb select at 3.0 v close

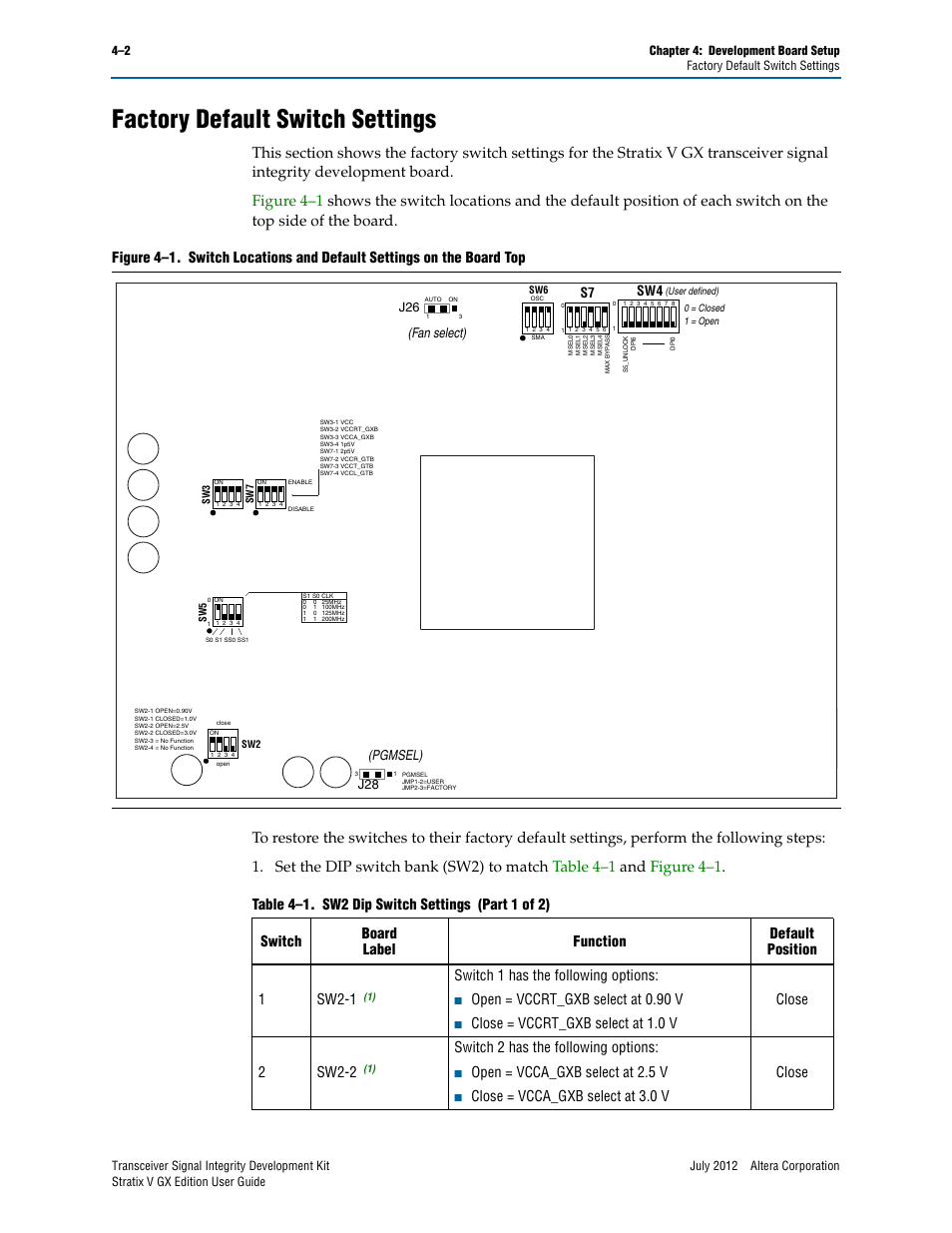

Factory default switch settings, Factory default switch settings –2, Figure 4–1 | Shows the, Switch 1 has the following options, Open = vccrt_gxb select at 0.90 v, Switch 2 has the following options, Open = vcca_gxb select at 2.5 v, Close = vcca_gxb select at 3.0 v close | Altera Signal Integrity Development Kit, Stratix V GX Edition User Manual | Page 14 / 52 Factory default switch settings, Factory default switch settings –2, Figure 4–1 | Shows the, Switch 1 has the following options, Open = vccrt_gxb select at 0.90 v, Switch 2 has the following options, Open = vcca_gxb select at 2.5 v, Close = vcca_gxb select at 3.0 v close | Altera Signal Integrity Development Kit, Stratix V GX Edition User Manual | Page 14 / 52
