Wiring
Operating Manual PSSu E F AI I(­T)(­R)
21981­EN­05 24

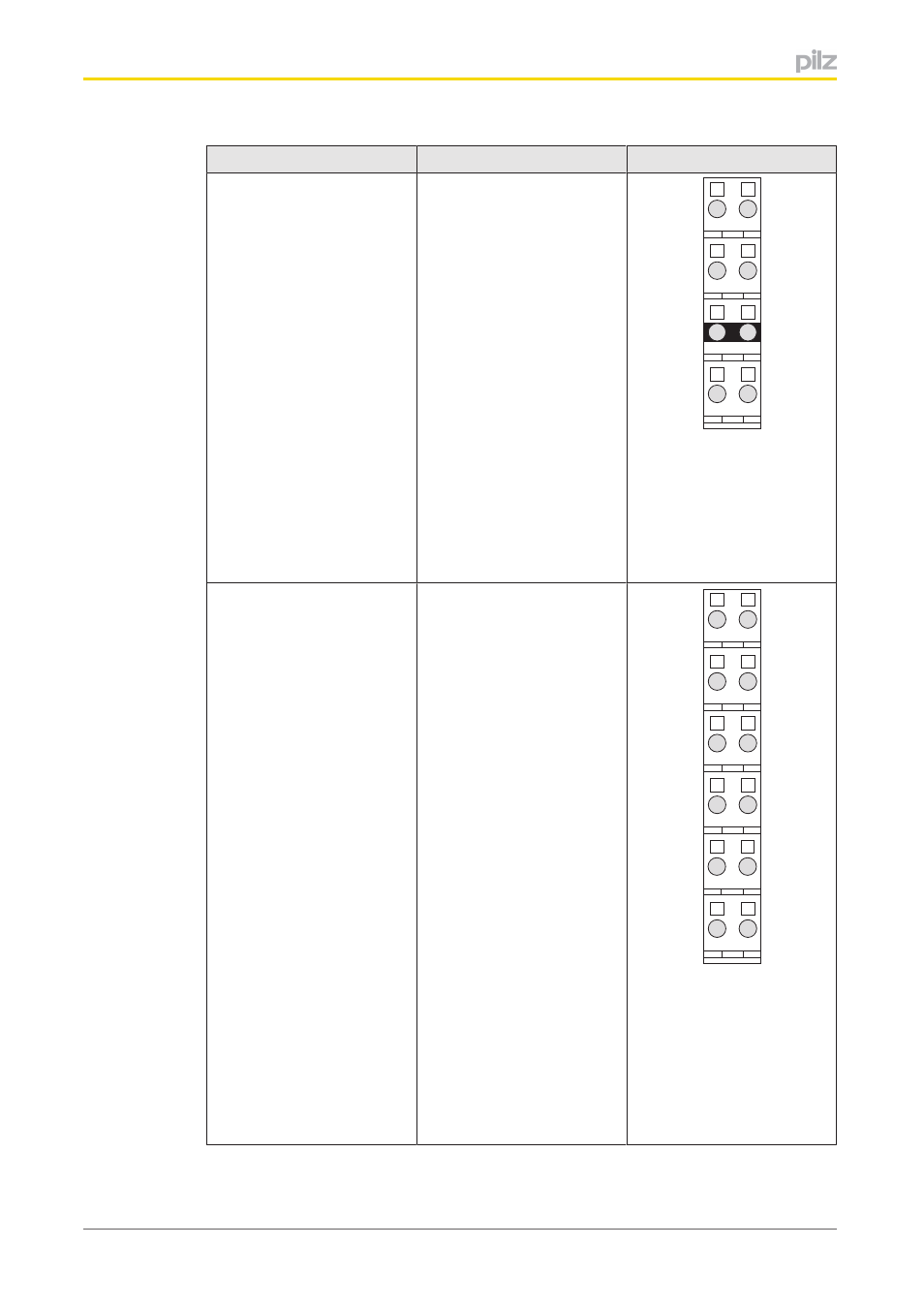

Base module Terminal configuration
Screw terminals:
PSSu BP­C 1/8S
PSSu BP­C 1/8S­T
Cage clamp terminals:
PSSu BP­C 1/8C
PSSu BP­C 1/8C­T
With C­rail:
11: Input I0+
21: Not assigned
12­22: 0 V analogue
(12­22 linked within the base
module)
13­23: C­rail supply,
shield connection
(13­23 linked within the base
module)
14: Input I0­
24: Not assigned
21 11
22 12
23 13
24 14
Screw terminals:
PSSu BP 1/12S
PSSu BP 1/12S­T
Cage clamp terminals:
PSSu BP 1/12C
PSSu BP 1/12C­T
Without C­rail:
11: Input I0+
21: Not assigned
12­22: 0 V analogue
(12­22­15­25 linked within
the base module)
13­23: Shield connection
(13­23­16­26 linked within
the base module)
14: Input I0­
24: Not assigned
15­25: 0 V analogue
(12­22­15­25 linked within
the base module)
16­26: Shield connection
(13­23­16­26 linked within
the base module)
21 11
22 12
23 13
24 14
26 16
25 15
