Wiring
Operating Manual PSSu E F AI I(­T)(­R)
21981­EN­05 23
} On base modules with screw terminals:
– If you use a multi­strand cable to connect the I/Os, it is recommended that you use
ferrules conforming to Parts 1 and 2 of DIN 46228, 0.14 ... 1.5 mm
2 , Form A or C,
although this is not essential. To crimp the ferrules you can use crimp pliers (crimp
form A or C) conforming to EN 60947­1, such as the PZ 1.5 or PZ 6.5 from
Weidmüller, for example.
– Maximum torque setting: 0.8 Nm
} Use copper wiring.

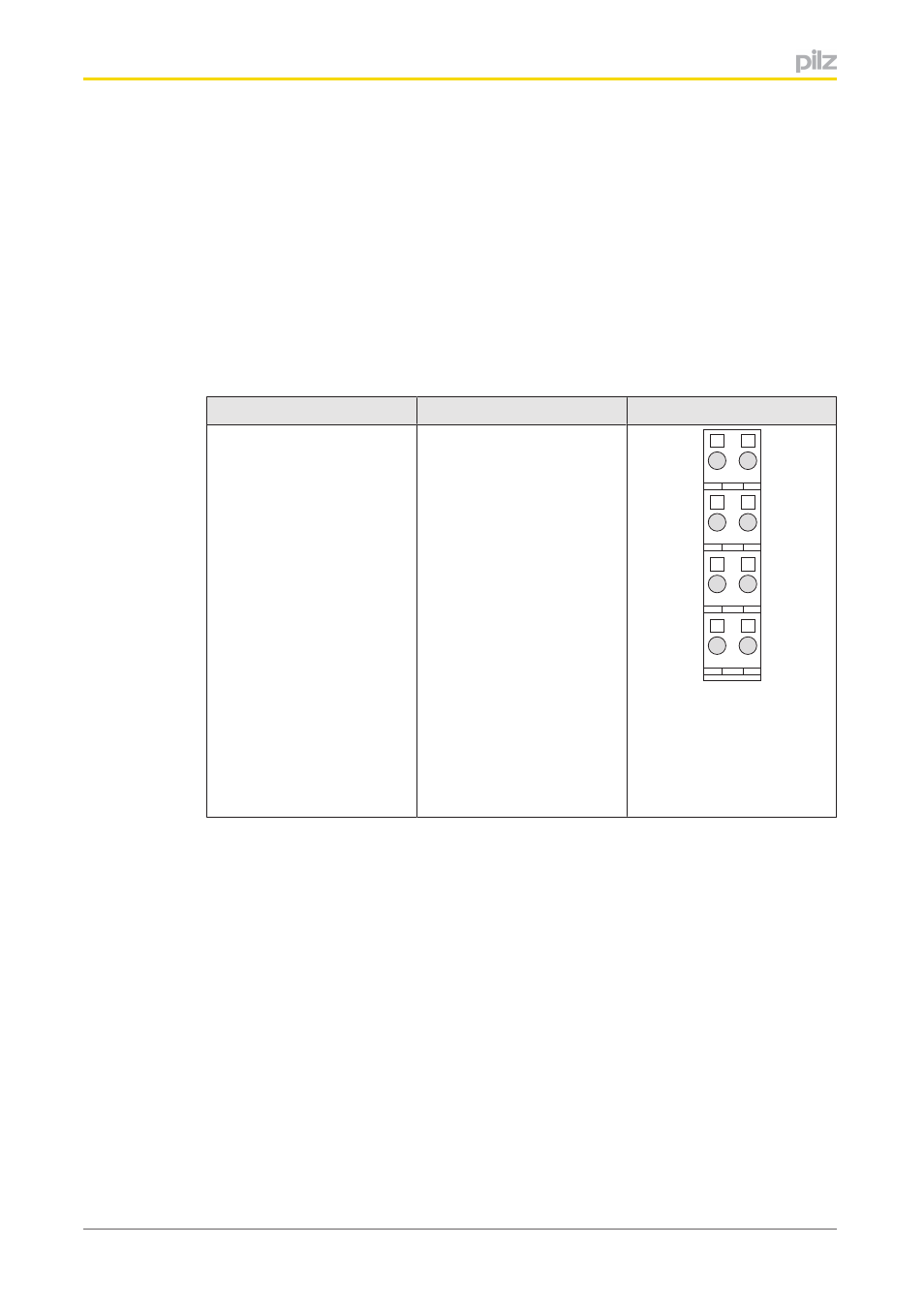

6.2 Terminal configuration
Base module Terminal configuration
Screw terminals:
PSSu BP 1/8S
PSSu BP 1/8S­T
Cage clamp terminals:
PSSu BP 1/8C
PSSu BP 1/8C­T
Without C­rail:
11: Input I0+
21: Not assigned
12­22: 0 V analogue
(12­22 linked within the base
module)
13­23: Shield connection
(13­23 linked within the base
module)
14: Input I0­
24: Not assigned
21 11
22 12
23 13
24 14
