6 commissioning, Wiring, 1 general wiring guidelines – Pilz PNOZ mmc3p DP User Manual

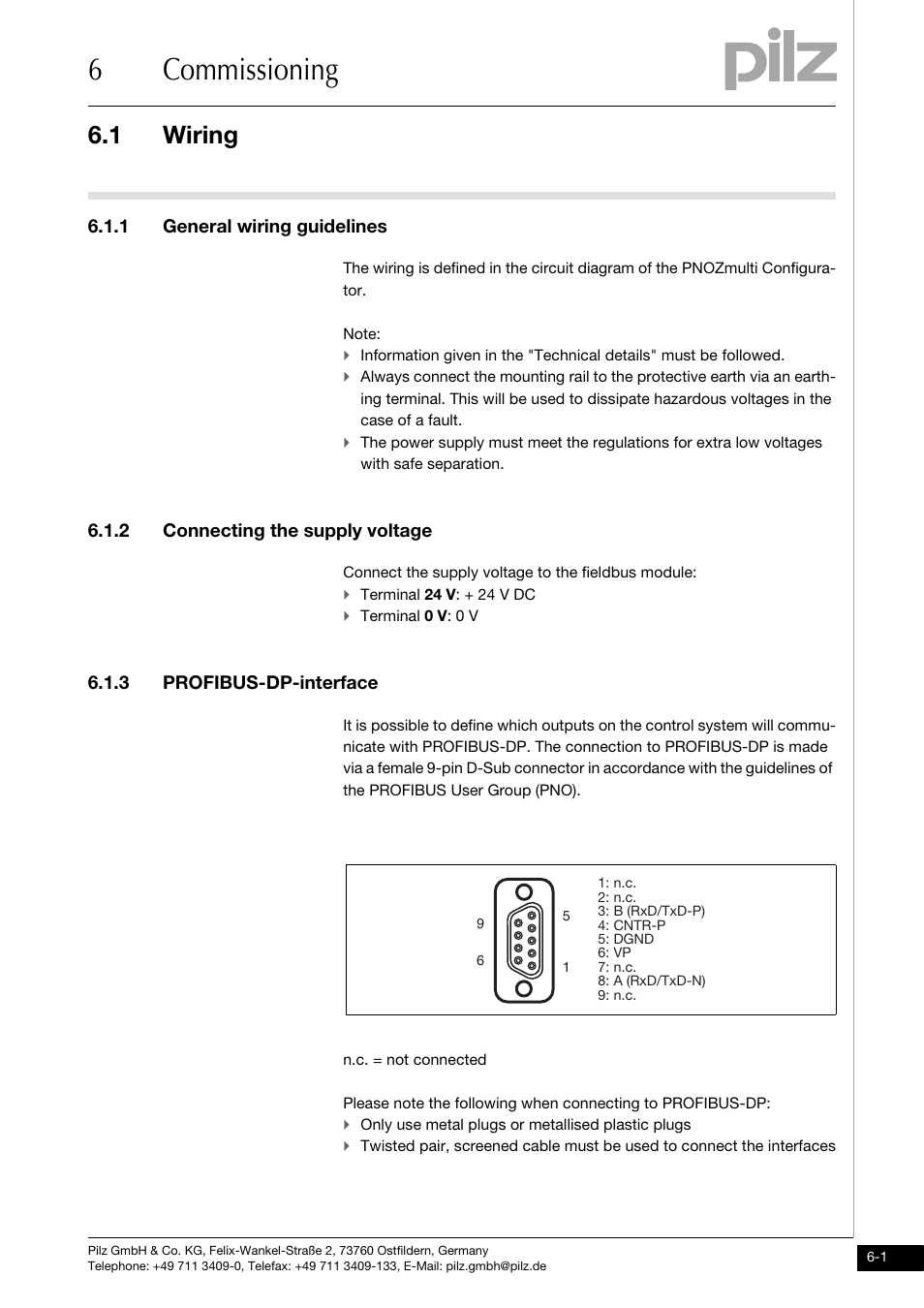

Page 19: 2 connecting the supply voltage, 3 profibus-dp-interface, 6commissioning, 1 wiring
