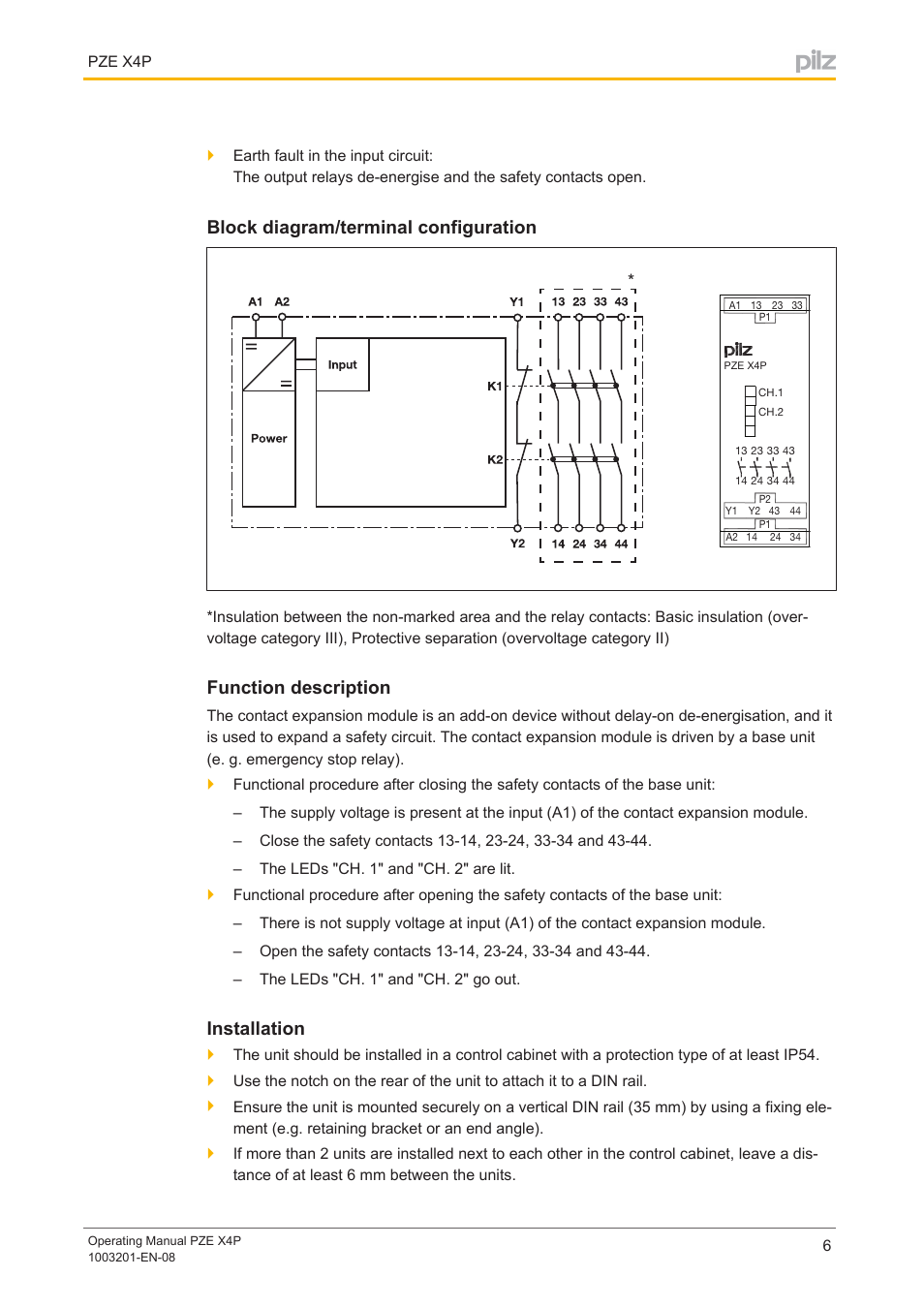

Block diagram/terminal configuration, Function description, Installation – Pilz PZE X4P 24VDC 4n/o User Manual
Page 6
