805QS SWITCh CalIBRaTIOn
NOTE: This section only applies to
the 805QS. - for more specific informa-
tion on switch operation, please refer
to “805QS Electronic Pressure Switch
General Instructions,” form GI1547.
To calibrate the switch output of a device,
begin by clicking the “Set/Verify Switch
Points” button. Simply follow the guided
steps to complete the switch calibration.
New switch set points can be entered to
re-range the device’s switch output as
desired.
The guided calibration wizard will pro-
vide step-by-step instructions on how to
calibrate the device’s switch output. Follow
these instructions to guide you through
the calibration process.
NOTE: Take care to ensure the USB cable remains connected during calibration.
If the USB cable should become disconnected at any point during the calibration,
it may be necessary to exit the Calibration Manager and restart the Calibration
Wizard.

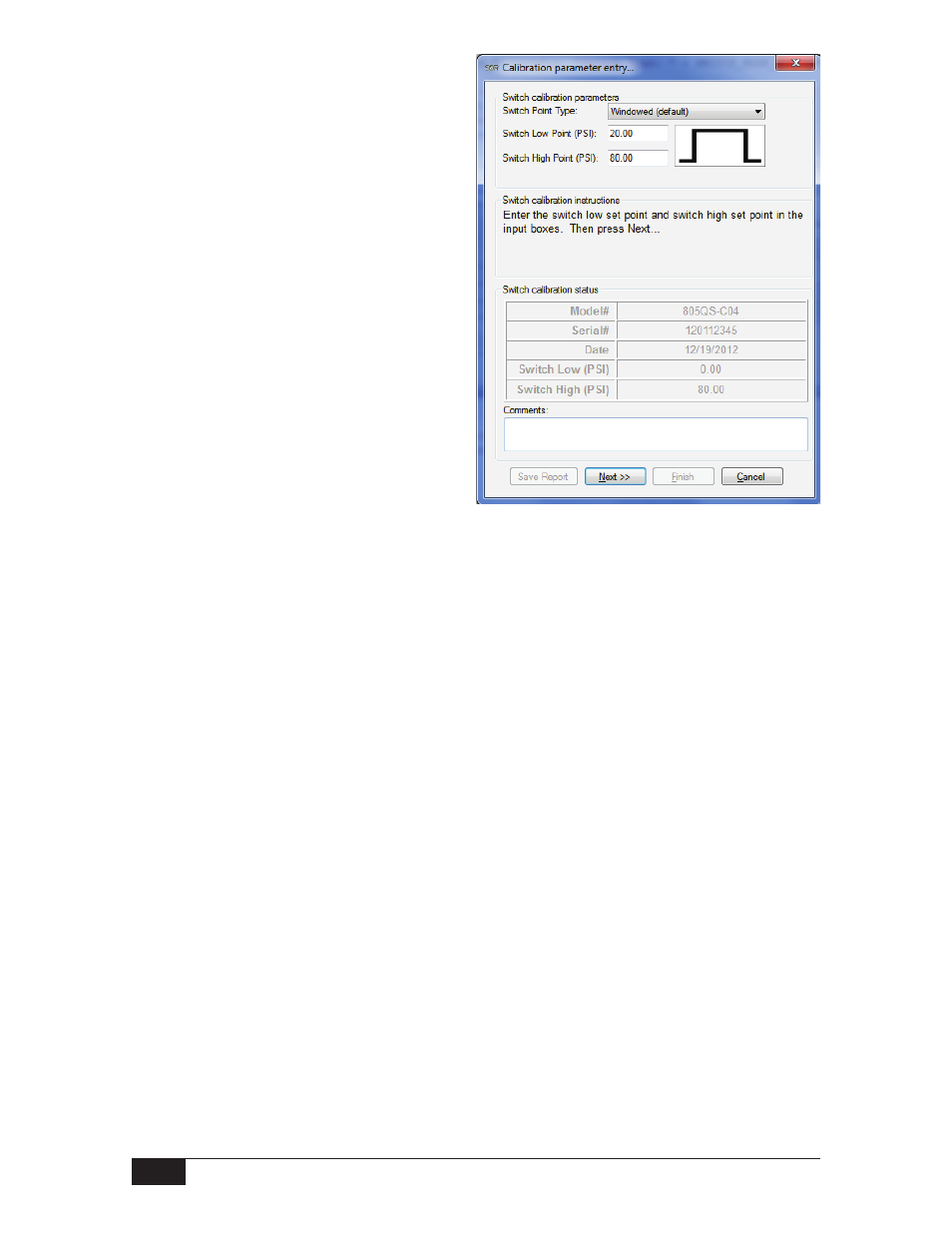

After calibrating the device’s switch output, the following summary screens are
displayed based on the calibrated switch type.
