4

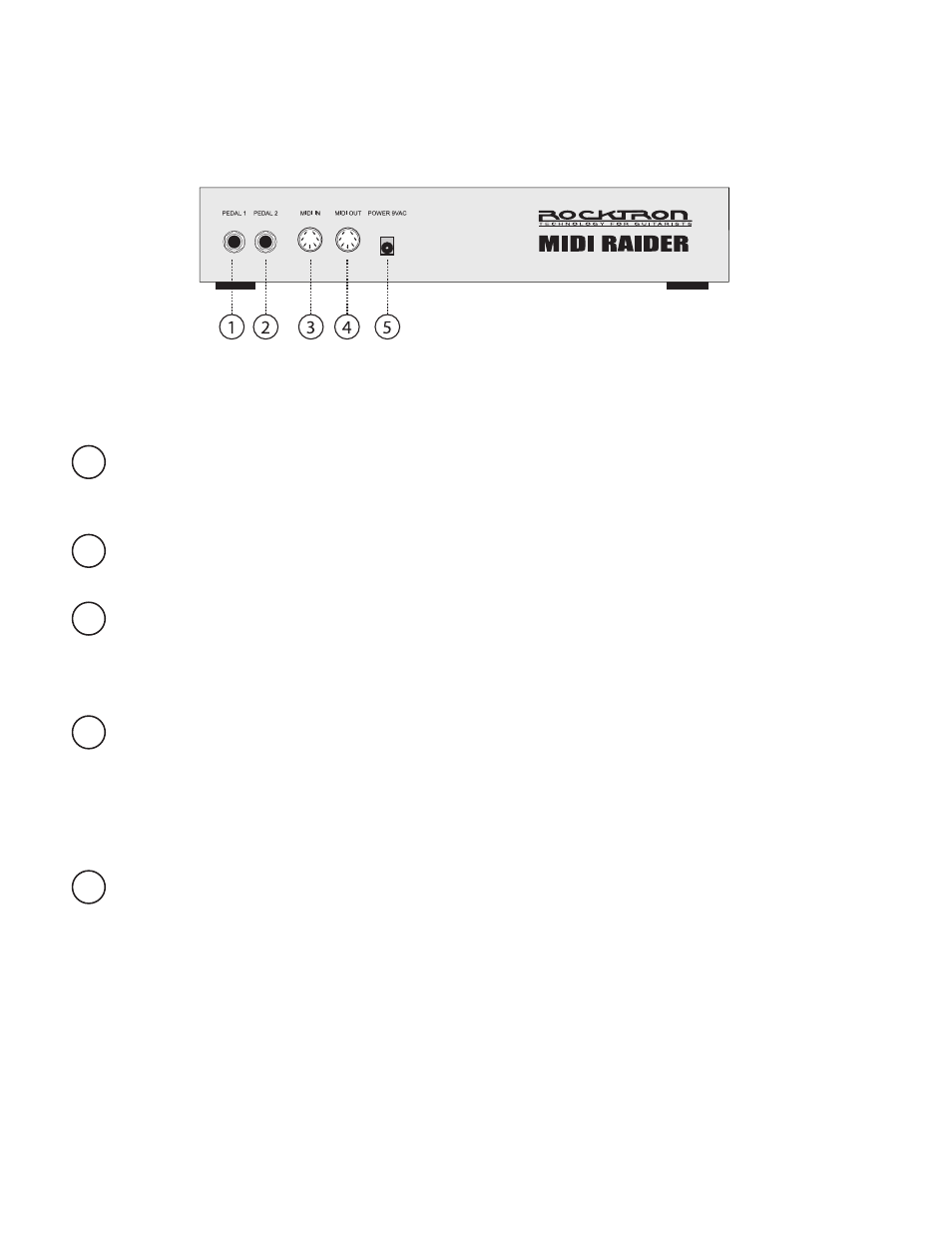

Rear Panel
PeDal 1 jack
PeDal 2 jack
MIDI In jack
MIDI OUT jack
POWer jack
This ¼” stereo Trs jack allows for the connection of a continuous control-
ler (such as an expression pedal, volume pedal, fader, etc.) to the MIDI
raider.
This ¼” stereo Trs allows for the connection of a second continuous con-
troller to the MIDI raider.
This 7-pin DIn connector accepts the MIDI output signal from another
MIDI transmitting device which may be used to control the MIDI raider. In
some applications, MIDI information will also be sent out through the MIDI
In jack through pins 1 and 3.
This 7-pin DIn connector transmits MIDI information from the MIDI
Raider and connects to a MIDI receiving device or the first in a chain of
MIDI receiving devices. In some applications, MIDI information will also
be received through the MIDI OUT jack through pins 1 and 3. Pins 6 and
7 of this connector provide phantom power to the MIDI raider from your
rack.
This 2.5mm pin jack accepts power from the 9VaC adaptor
supplied with the unit.
1
2
3
4
5
