7. Interrupting an evaporation process:
• Press the left-hand function key "mode".
• Select "Stop evaporation" and confirm.
Without an interruption, the evaporation process ends after the
preselected time. The following process runs automatically:
• At maximum speed: the stop valve closes the connection to the vacuum
pump, the aeration valve opens; the rotor speed is maintained for 30
sec (aeration phase, to avoid delays in boiling).
• Rotor decelerates until it is at a standstill. After the standstill of the rotor
the lid can be opened in order to remove the rotors.

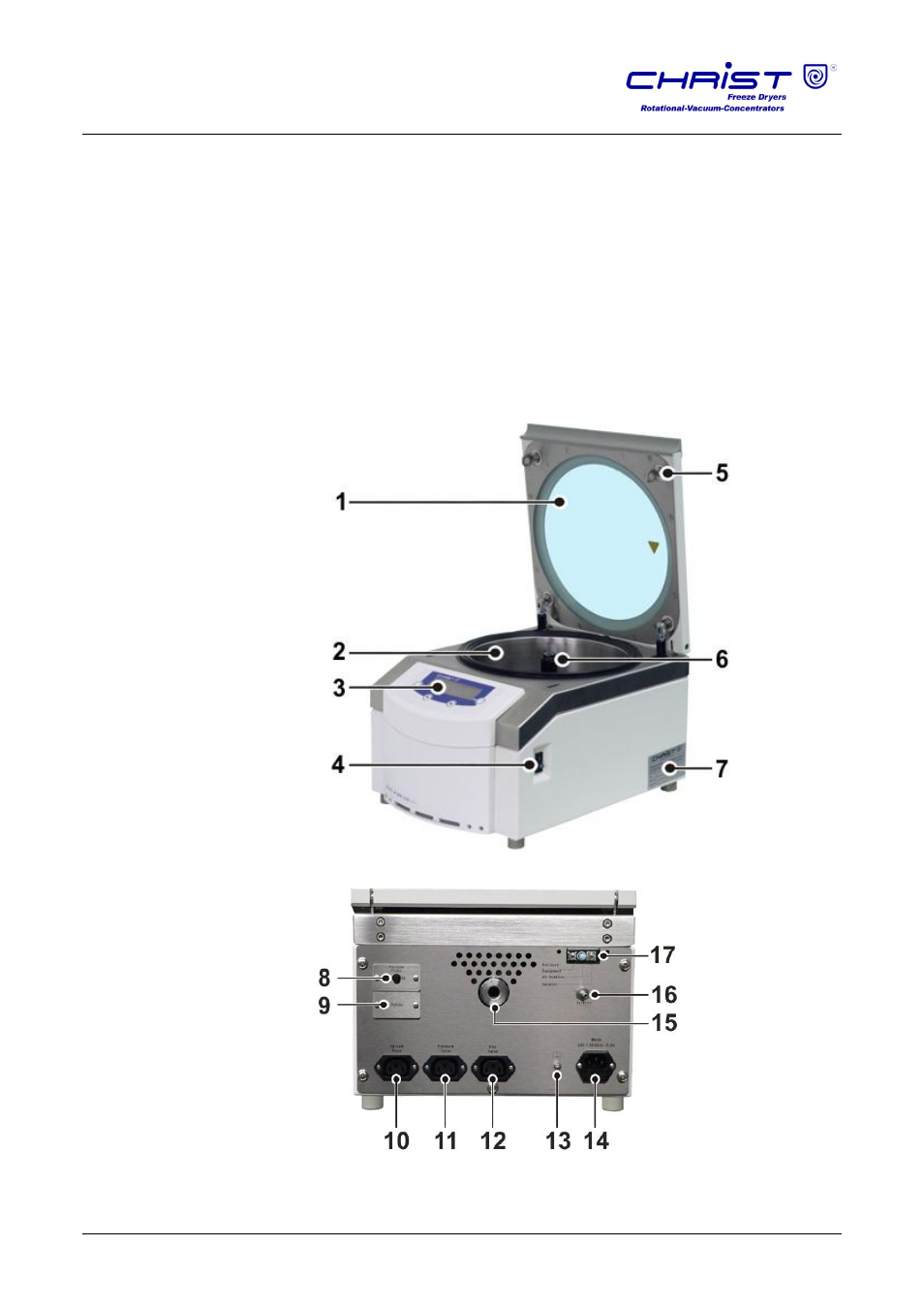

Function and control elements:
1 Lid
2 Rotor chamber
3 Control panel
4 Mains power switch
5 Lid lock device
6 Rotor shaft
7 Name plate
8 Electrical vacuum measuring
sensor connection
9 Option: serial interface RS 232
10 Power supply connection of
the vacuum pump
11 Power supply connection of
the pressure control valve
12 Power supply connection of
the stop valve
13 Equipotential bonding screw
14 Mains connection and mains
fuse protection
15 Vacuum connection
16 Connection for aeration
17 Option: Valve block
Fig. 59: Total view of 2-25 CD
plus
Abb. 60: Rear view of 2-25 CD
plus
