Installation
8

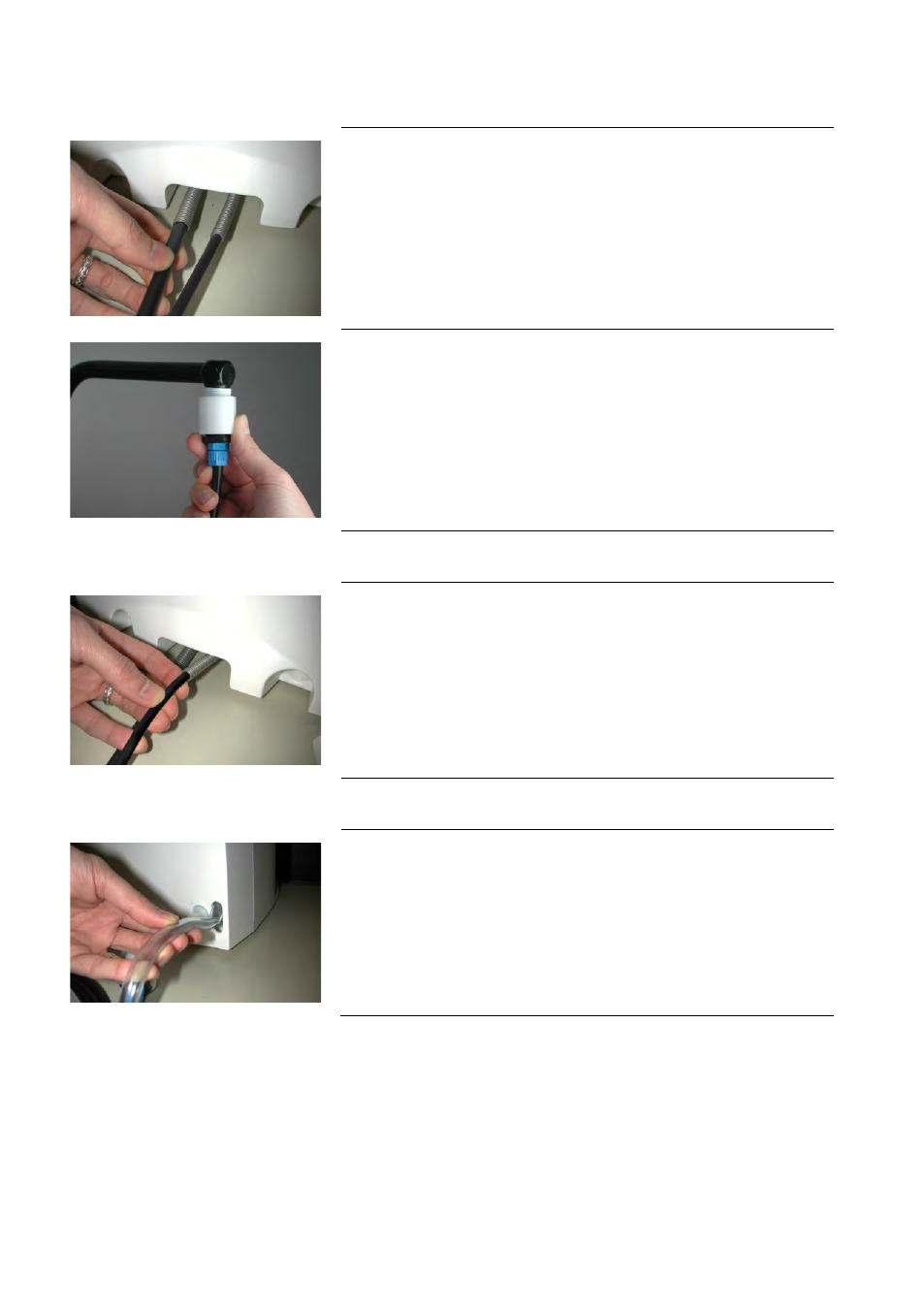

Feedwater Tubing
B • Locate the Feedwater Tubing exiting from the bottom middle of the
system (B). A 1/2 inch Female GAZ fitting with a screen filter is
attached at the end of this tubing. Unroll and route tubing to
Feedwater source.
• Apply white tape on the thread of the 1/2 inch Male GAZ valve or
fitting of the Feedwater source.
C • Connect the GAZ fitting on the end of the feedwater tubing to the
Feedwater source.
Reject Tubing
D • Locate the Reject Tubing exiting from the bottom middle of the
system (D). Unroll it, route and secure tubing to drain.
Overflow Tubing
E • Locate the Overflow Tubing exiting from the bottom right of the
system (E). Unroll, route and secure tubing to drain.
