Chapter 6: Maintaining The Cabinet
Product Service 1-800-522-7658 53
Original instructions

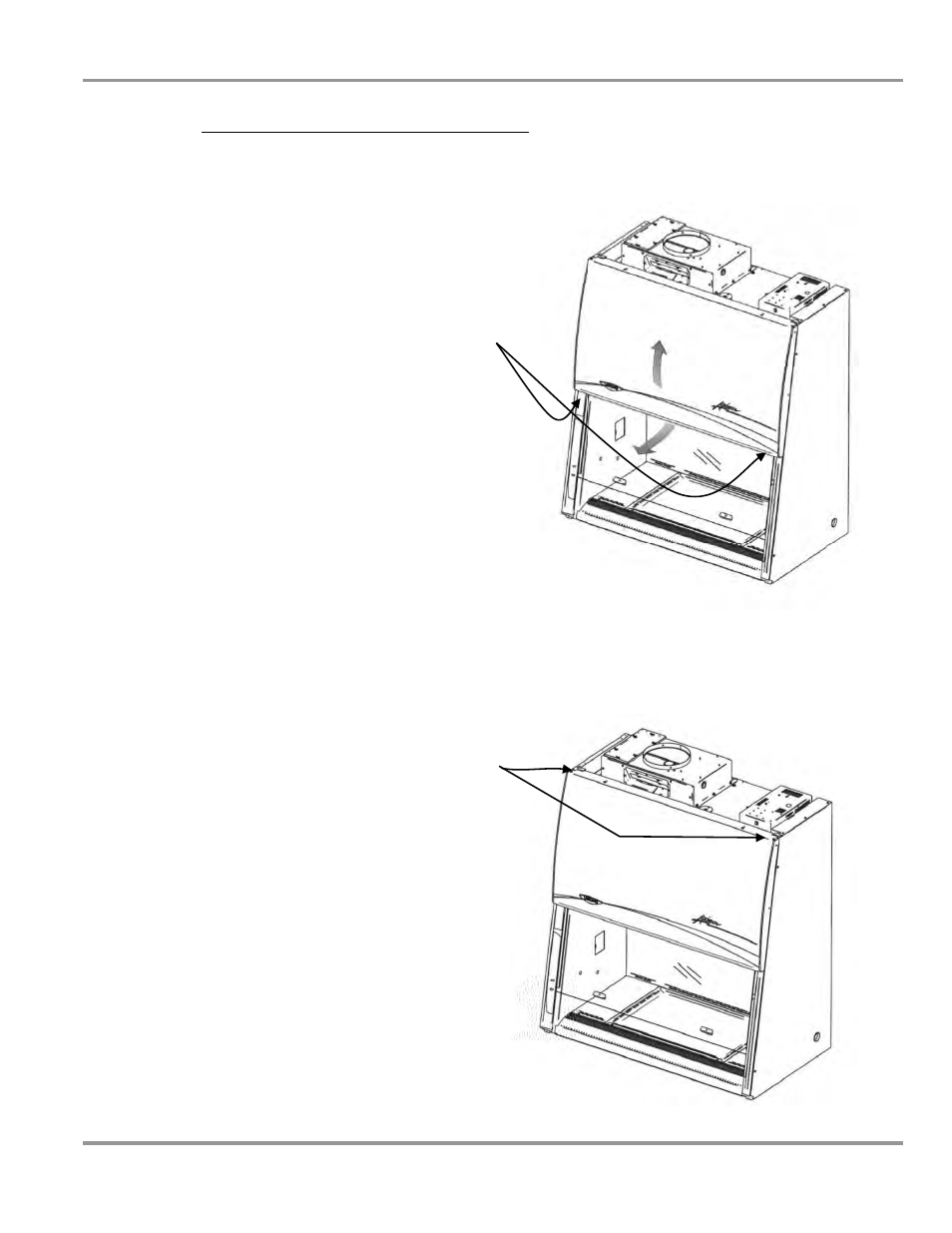

Font Panel Removal and Installation:
1.
Locate and remove the two Phillips
screws that secure the front panel as
shown in Figure 6-3. They are located
on the bottom corners of the front
dress panel.
2.
Swing the bottom of the dress panel
out to clear the fluorescent light and
then lift the front dress panel straight
up and away from the cabinet.
1.
To reinstall the panel, reverse these
steps, ensuring that the plastic pin
in the top corners of the dress panel
properly engage the corner posts.
Figure 6-4
Figure 6-3
