When ordering spare parts, contact Glow-worm's own service organisation using the telephone number on the inside front cover of
this booklet.
Please quote the name of the appliance and serial number, to be found on the data label.
If ordering from British Gas also quote the G.C. number of the part.
15 Spare Parts
Key No.
Part No.
Description
GC Part No.
1
801724
Overheat Thermostat
E83996
2
2000801911
System Pressure Sensor
E83997
3
2000801831
Plate to Plate Heat Exchanger
E83998
4
801192
Diverter Valve Motor
E27211
5
801637
Electrode
E83999
6
2000801904
Safety Discharge Valve
E84000
7
2000801898
Automatic Air Vent
E84001
8
2000801897
Central Heating Filter
E84002
9
801722
Heating flow thermistor /Heating return thermistor
E84003
10
801649
Gas valve
E84004
10
802172
Gas valve (38cxi only)
E97505
11
801809
Mains Reset Switch
E84794
12
801906
Domestic Cold Water Inlet Filter
*
13
2000801910
Flow Sensor
E84014
14
801655
Igniter Unit
E84015
15
2000801909
By-pass
E84016
16
2000801923
230V Controls Interface
E84018
17
4000124180
Main P.C.B.
E84019
18
2000801380
Pump (head only)
E88868
19
801645
Fan
E84024
20
2000802643
User Interface 24cxi
E84020
20
2000802644
User Interface 30cxi
*
20
2000802645
User Interface 38cxi
*
21
801632
24cxi Burner
E84021
21
2000801840
30cxi Burner
E88867
21
2000802662
38cxi Burner
*

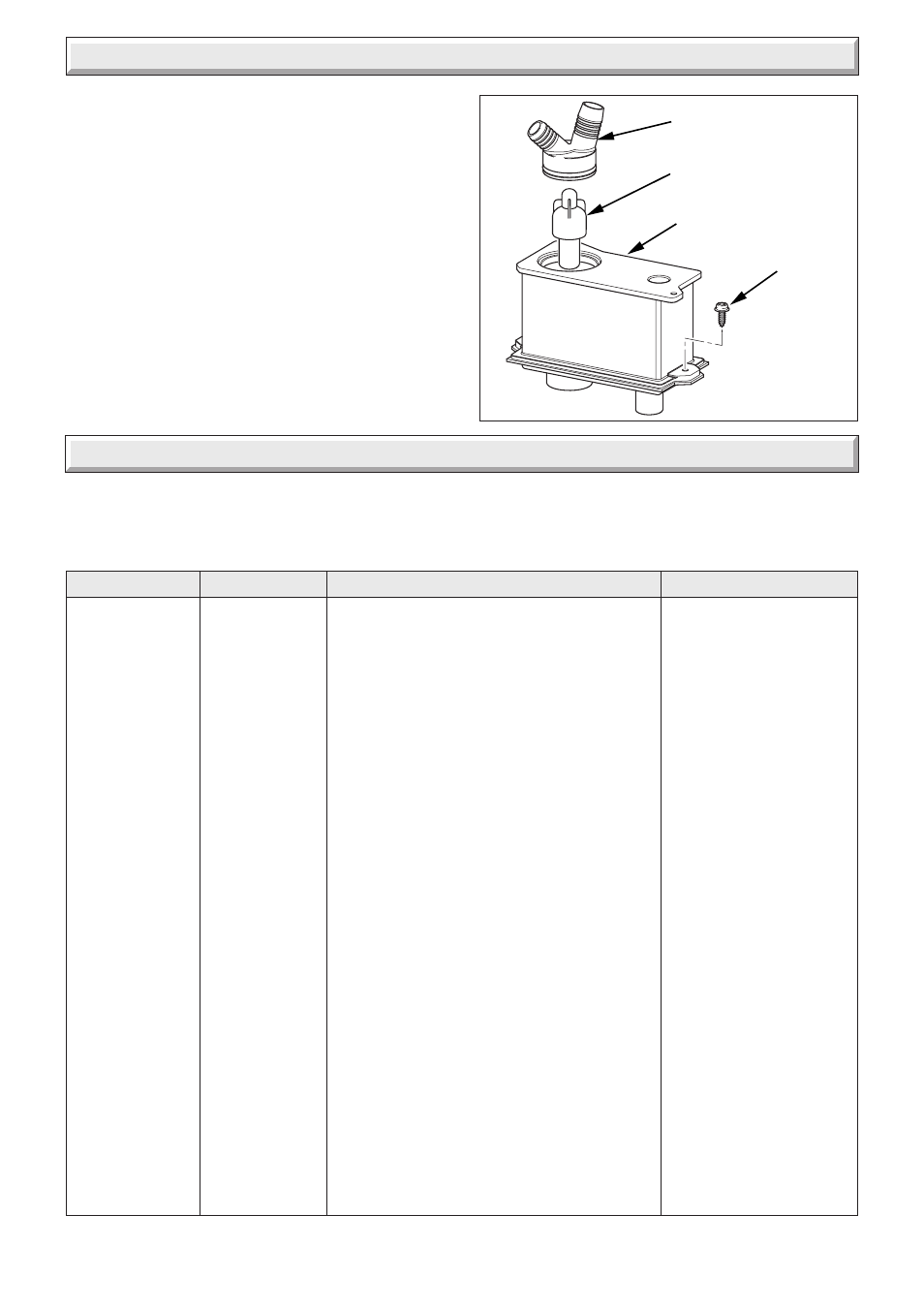

Diagram 14.29
12764
SIPHON
ADAPTER
CONDENSE
TRAP
FLOAT
SCREW
15 Spare Parts
Remove the drain connection downstream of the condense
trap.Remove the two condense trap securing screws. Lift up
and carefully remove the condense trap taking care not to spill
any water which may be left in the unit. As the unit is lifted
remove the flexible pipe on the outlet.
Remove the cap at the base of the condense trap.
Remove any solids found.
Remove the float to clean it.
Flush water through the trap to remove any remaining solids.
Check for any debris in the outlet pipe of the condensate drain
and clean as necessary.
Reassemble and refit the condense trap.
When refitting the cap ensure that a watertight seal is achieved,
but do not use excessive force.
Remove the siphon adaptor from the flexible tubes, using a
suitable container, flush the heat exchanger until the water
appears clear in the container.
