B Rackmount Installation

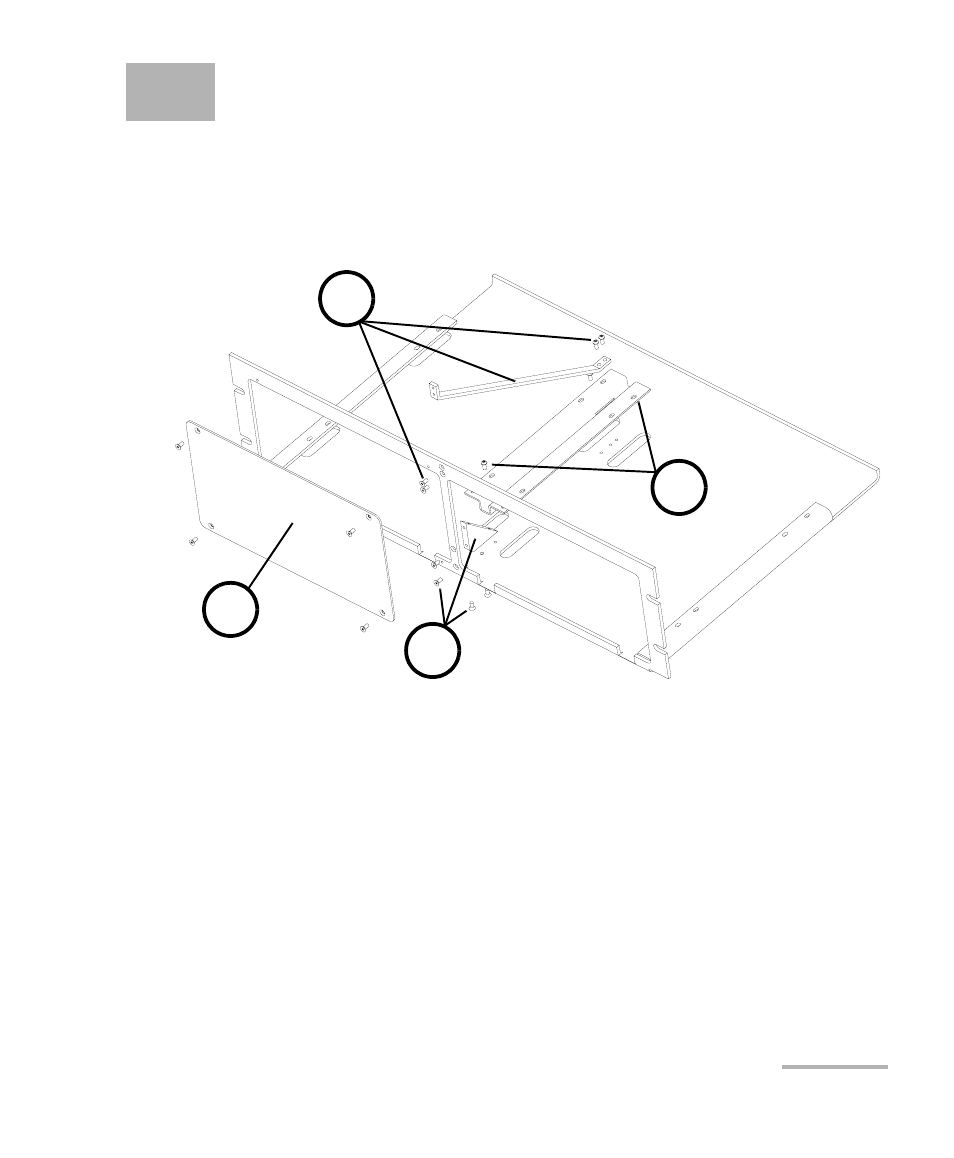

You can place your FLS-5834A CD/PMD Analyzer Source in a rackmount to
facilitate its usage.
To install the rackmount:
1. Fix the angle iron using four flat Phillips screws.
2. Fix the rackmount bracket to the frame using two round Phillips
screws.
3. Fix the rackmount stiffener using two flat Phillips screws (for the front
panel) and two round Phillips screws.
4. If your rackmount will contain only one unit, fix the rackmount cover
plate to the empty part of the frame using four flat Phillips screws.
2
3
4
1
