Operating the CD/PMD Analyzer Source
19
Activating or Deactivating the Source
Activating or Deactivating the Source
To activate the source:
1. Setup the source as explained in Setting CD/PMD Analyzer Source
2. To activate the source, press on the On/Off button. The active LED on
the module front will light up, and the front display will read "Source
ON", also showing a light beam icon.
The word "ON" will flash during the three-second safety delay.
To deactivate the source:
To deactivate the source, press the On/Off button again. The active
LED on the module front will then turn off and the display will read
"Source OFF."
I
MPORTANT
To obtain optimum stability, let the source warm up for 10 minutes.
If you do not respect this warmup time, the CD measurement will
present an uncertainty of 0.15 ps/nm.
RM
LK
Source
ON

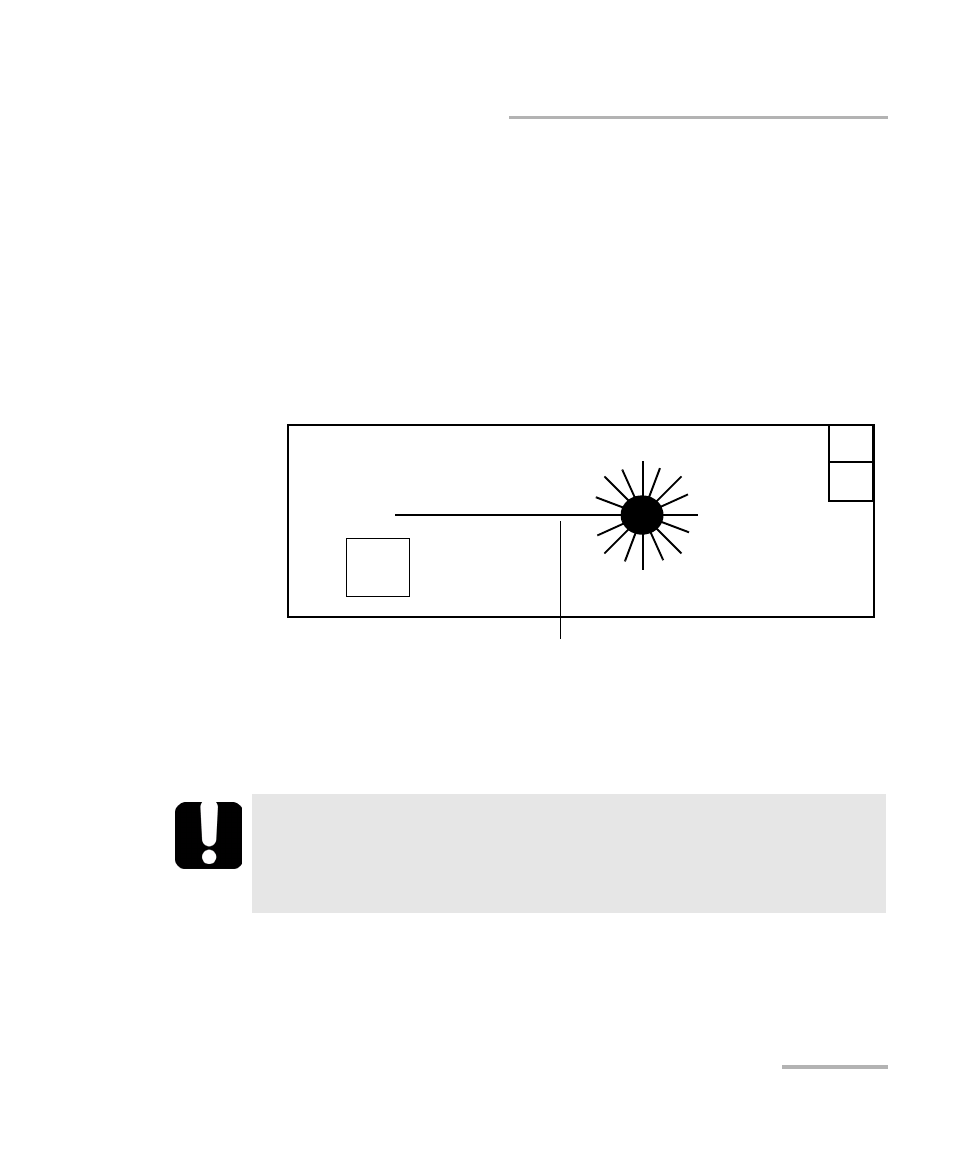

Active source indicator
