EXFO FLS-5800 CD/PMD Analyzer Source User Manual
Page 28
Controlling the Source Remotely
22
The RS-232 connector (serial port) at the back of the CD/PMD Analyzer
Source uses a DTE pinout configuration.
The commands used in both protocols are the same and are summarized
in two reference tables:
³
Common GPIB commands are listed in IEEE 488.2 Commands—Quick
Reference table on page 59.
³
Specific commands for the CD/PMD Analyzer Source are shown in the
Product-Specific Commands—Quick Reference table on page 81.
You can find detailed information in the Remonte Control Commands
appendix.
When the CD/PMD Analyzer Source is remotely controlled, RM appears in
the upper right-hand corner of the display.

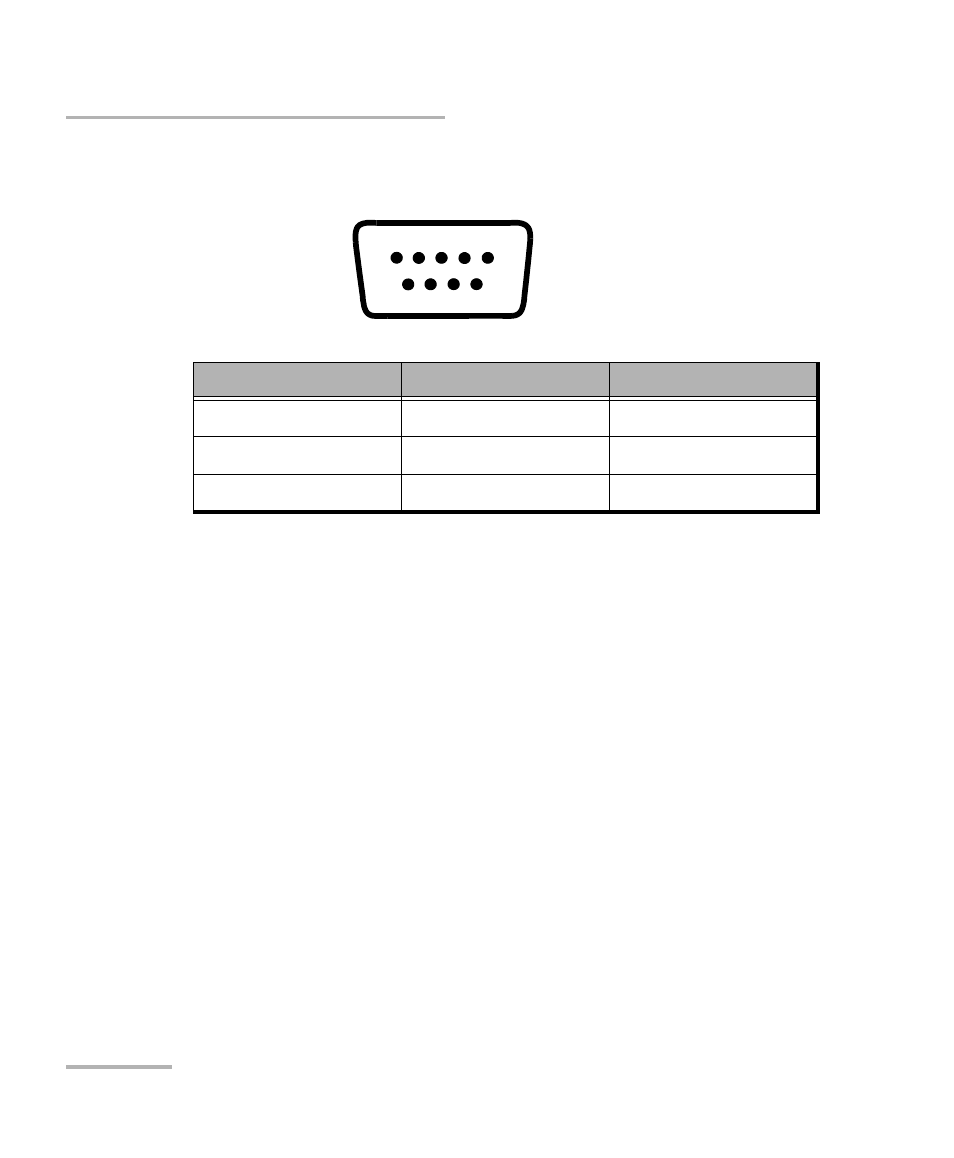

Pin Number
Description
Direction
2
Receive (Rx)
Input
3
Transmit (Tx)
Output
5
Signal ground (Gnd)
—
1 2 3 4 5
6 7 8 9
