EXFO ETS-1000 - Manual (Page 92)

Configuring and Starting a Test
84 ETS-1000
Testing TCP/IP
Traceroute
Traceroute utility is used to determine data transmission routes in TCP/IP
networks. This feature is not available in the basic configuration and
should be ordered additionally. The utility sends sequence of datagramms
to a specified network host, and registers data about all intermediate
routers that sent datagramms passed through during transmission. Thus,
Traceroute utility allows the diagnostics of all intermediate network
equipment on a data transmission path.


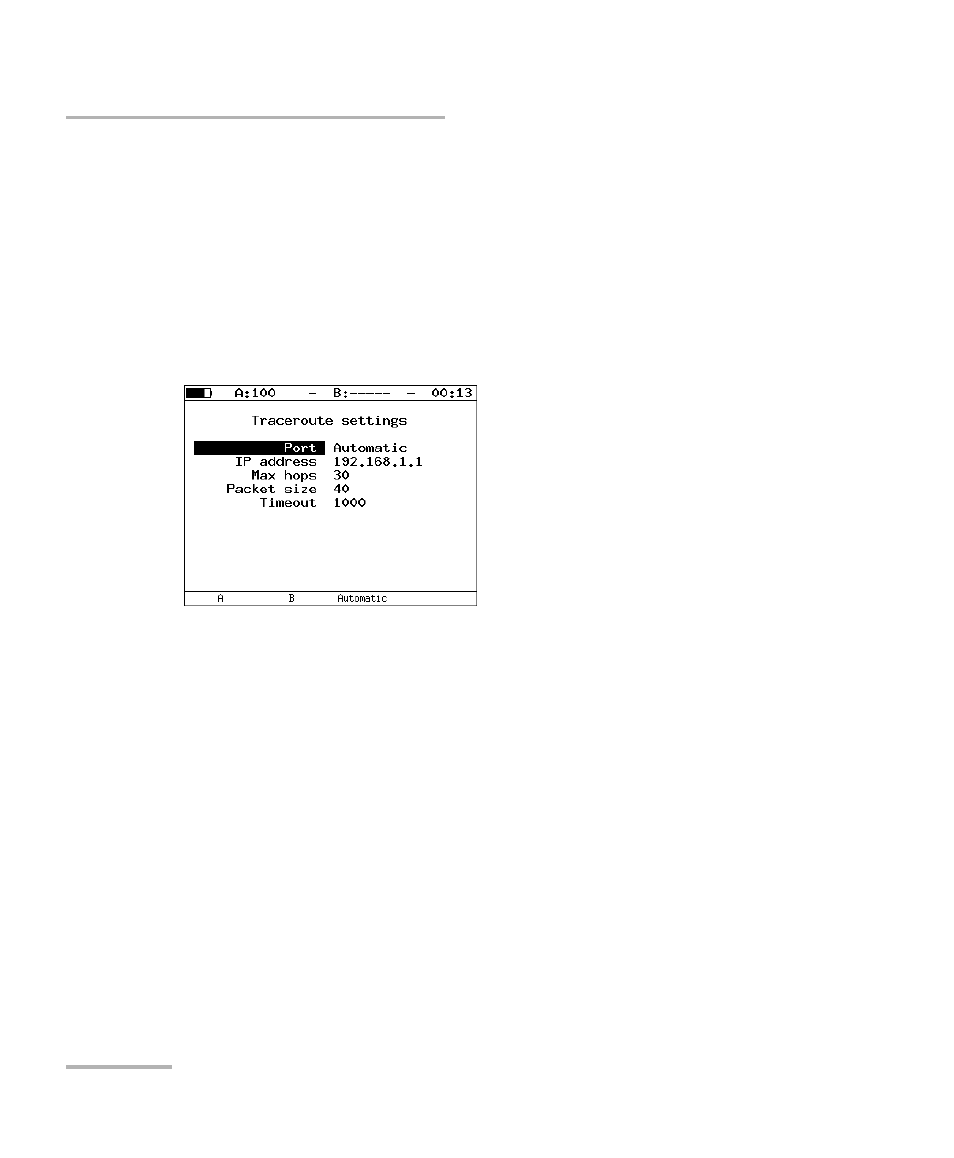

Port: Select a port to send requests from. If Automatic is set, the port
will be selected automatically.

IP address: Enter the IP address of the tested host.

Max hops: Enter the maximum number of routers from which the
packets can be transmitted through.

Packet size: Enter the frame size in bytes.

Timeout: Enter the duration of time to wait for response.
