EXFO ETS-1000 User Manual
Page 70
Configuring and Starting a Test
62
ETS-1000
RFC 2544. Performing Analysis
Graph

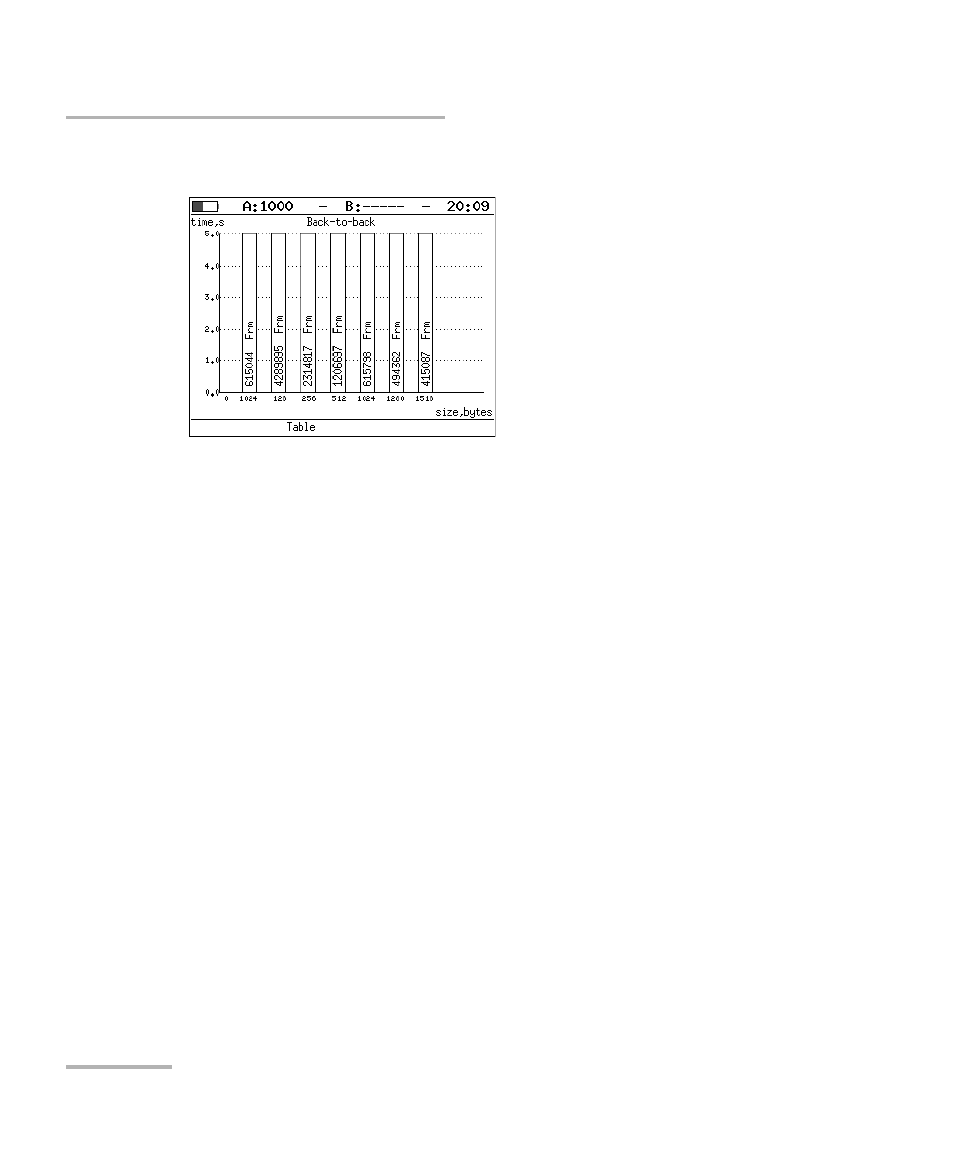

On the diagram, for each of the specified frame sizes a vertical bar shows
measured value of the time during which the tested equipment was coping
with peak load. The count of frames that are transmitted during the test is
displayed on the diagram vertical bars.
