Running a VoIP Test
64 AXS-200/650
Reading Results
³
Jitter Analysis is the status of the quality of the call by displaying an
estimate of the variance of the real-time transport protocol (RTP) data
packet inter-arrival time.
³
Details button shortcuts to the applicable tab which provides more
information about a particular test result.
To view more information about each available test result:
1. Press the up/down arrows to highlight the Details button alongside the
desired test result.
2. Press to select the desired Details button.

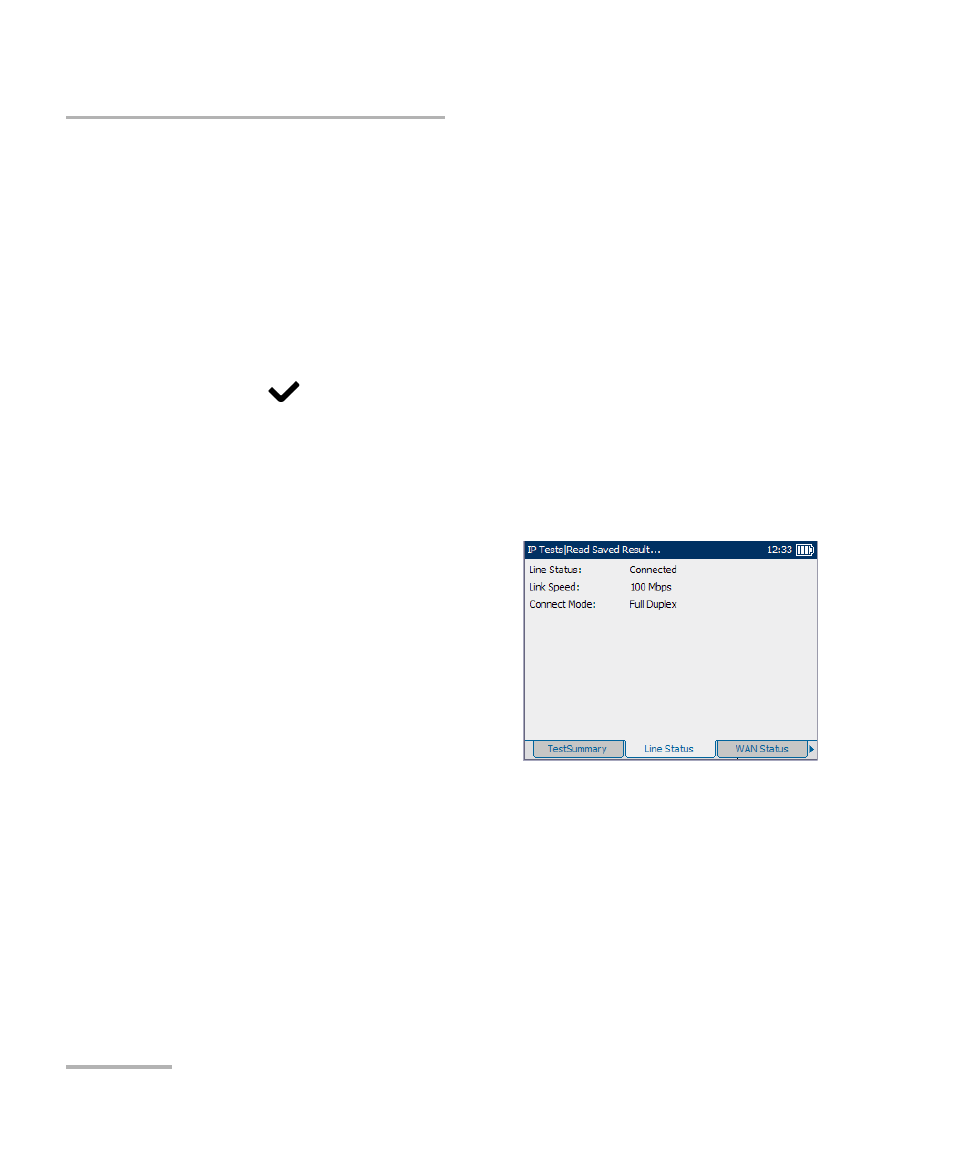

Line Status
The Line Status tab allows you to view the conditions of the line under test
which was configured in the connection setup.
The available test results are the
following:
³
Line Status displays either
Connected or Disconnected for
the particular line connection
under test.
³
LinkSpeed is a choice between
AUTO (negotiated during the link
establishment), 100 or 10 Mbps.
³
ConnectMode is FULL_DUP or HALF_DUP, when Link Speed is set to
either 100 or 10 Mbps.
