Connection Setup for IP Triple-Play Verification Tests
14 AXS-200/650
Setup Line Connection

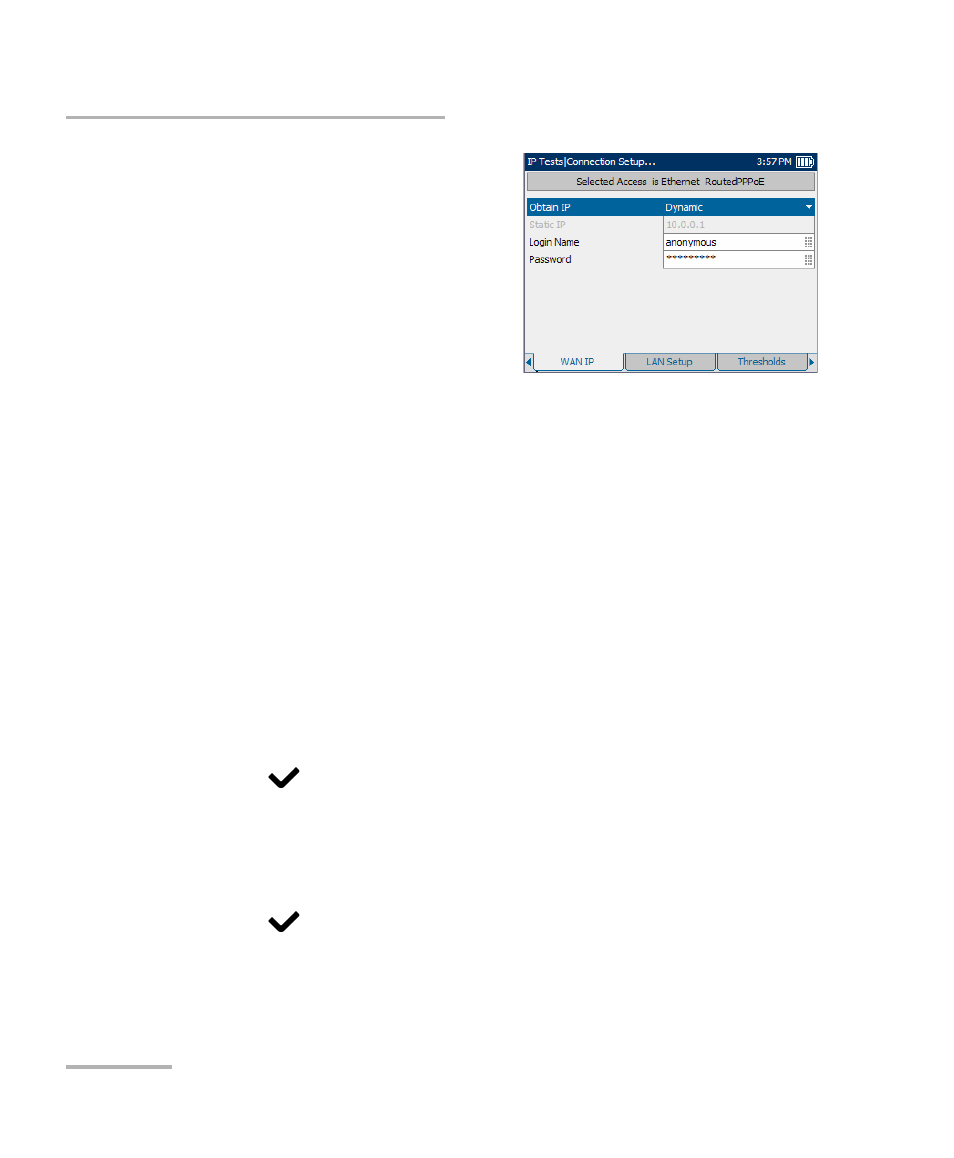

When the AccessMode selection is set
to Routed PPPoE, the available
parameters are the following:
³
Obtain IP is either Dynamic
where the access concentrator or
broadband remote access server
assigns a temporary IP address to
the unit, or Static where you enter
the IP address of the unit.
³
Static IP is the address of the current location assigned by the service
provider. This entry is unavailable if Obtain IP is set to Dynamic.
³
Login Name is your user ID.
³
Password is your user password.
Note: WAN IP setup is not required when Access Mode is set to Bridged. The line
encapsulation setting defines the parameters required.
To select the WAN IP parameters to configure:
1. From the Connection Setup pane, press the left/right function arrows
until the WAN IP tab is displayed.
2. Press the F1, F2, or F3 key located just below the tab to select it.
3. Press the up/down arrows to select the desired parameter.
4. Press to open the list or modify the parameter.
5. In the list, press the up/down arrows to select the function or mode.
OR
Use the alphanumeric keypad to enter the value you want to specify.
6. Press to confirm the selection.
