EXFO AXS-200/650 IP Triple-Play Test Set - Manual (Page 50)

IPTV Analysis
44 AXS-200/650
Reading Results

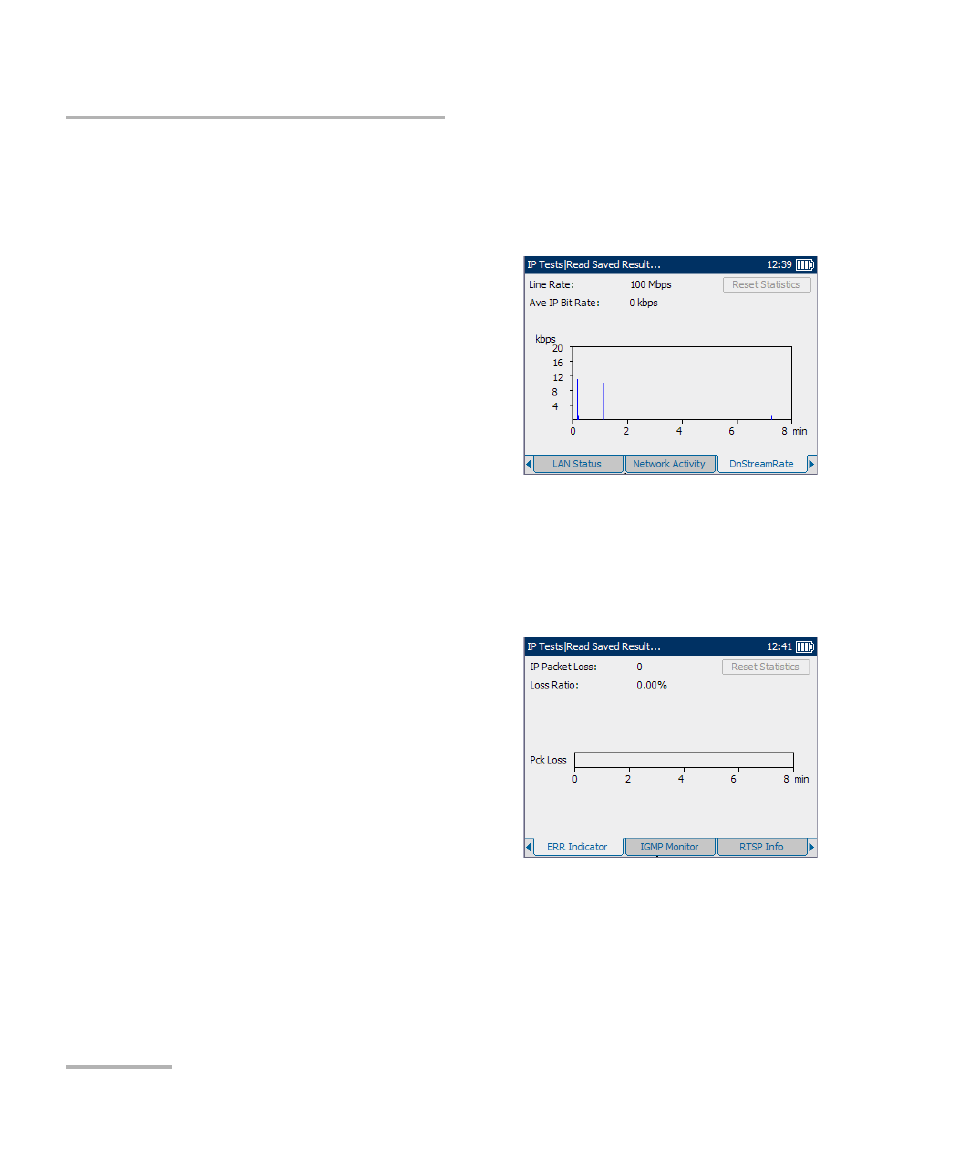

Down Stream Rate
The DnStreamRate tab allows you to view the bit rates of different layers
related to the IPTV service.
The available test results are the
following:
³
Line Rate is the actual rate
achieved by the circuit, in kbps.
³
Ave IP Bit Rate is the average IP
data rate for the IPTV service,
including all channels detected.
³
Reset Statistics button sets all
monitoring values to 0.
ERR Indicator
The ERR Indicator tab allows you to view the errors encountered at the
different layers related to the IPTV service.
The available test results are the
following:
³
IP Packet/Pck Loss is the number
of packets lost, with errors, or out
of sequence, during the test
period.
³
Loss Ratio is the percentage of IP
packet loss during a one second
period.
³
Reset Statistics button sets all monitoring values to 0.
