Connection Setup for IP Triple-Play Verification Tests
12 AXS-200/650
Setup Line Connection
To select the WAN access parameters to configure:
1. From the Connection Setup pane, press the left/right function arrows
until the WAN Access tab is displayed.
2. Press the F1, F2, or F3 key located just below the tab to select it.
3. Press the up/down arrows to select the desired parameter.
4. Press to open the list or modify the parameter.
5. In the list, press the up/down arrows to select the function or mode.
OR
Use the alphanumeric keypad to enter the value you want to specify.
6. Press to confirm the selection.

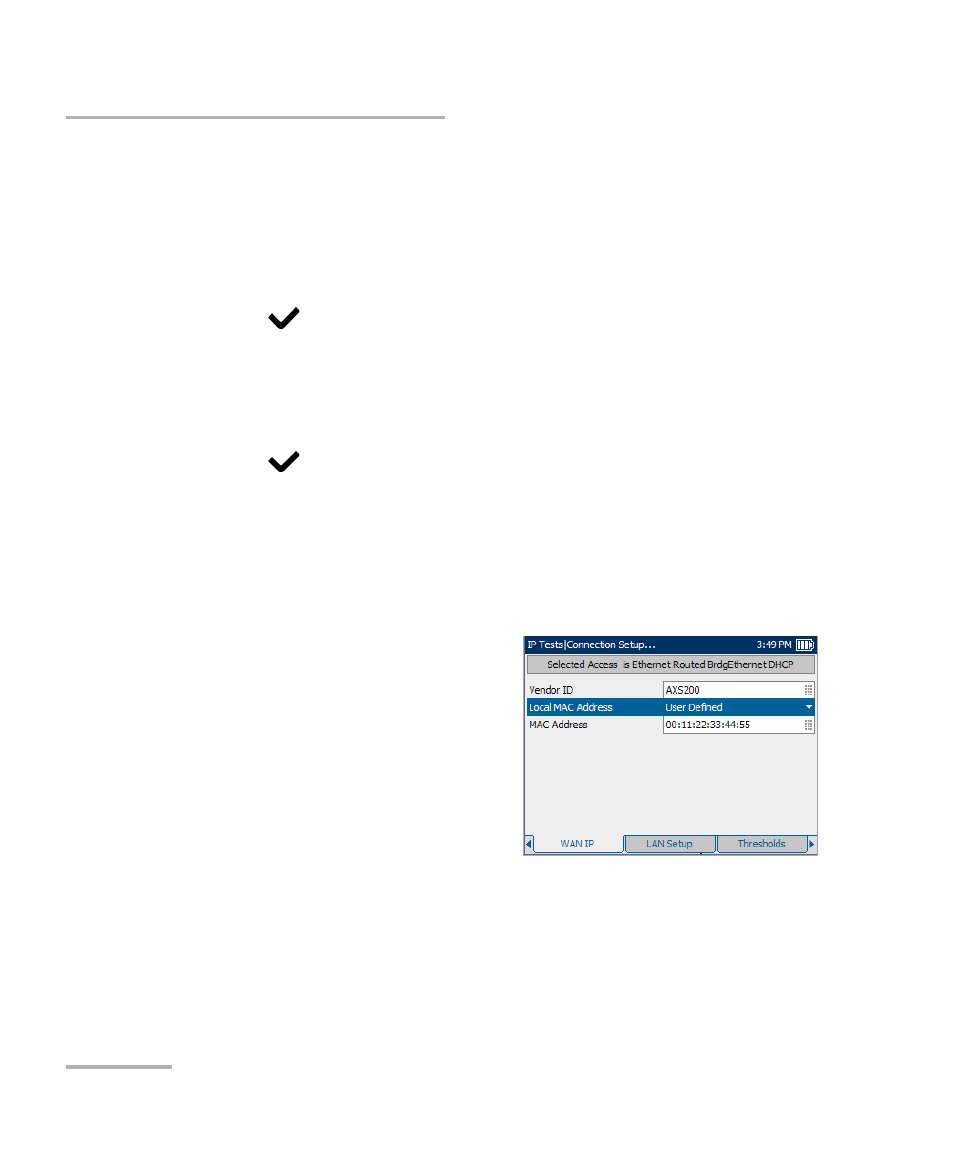

WAN IP
The WAN IP tab allows you to configure the wide area network parameters
required to connect to the ISP for a Selected Profile composed of the
current LineMode and AccessMode selections.
When the AccessMode selection is set
to Routed BrgdEthernet DHCP, the
available parameters are the
following:
³
Vendor ID is the name of the unit,
maximum 80 characters.
³
Local MAC Address is the internal
MAC address of the unit: either
AXS200 or User Defined.
³
MAC Address is a specific MAC address, maximum 17 characters, if
you select User Defined for the previous parameter.
