Data Analysis
IP Triple-Play Test Set 59
Reading Results
LAN Status

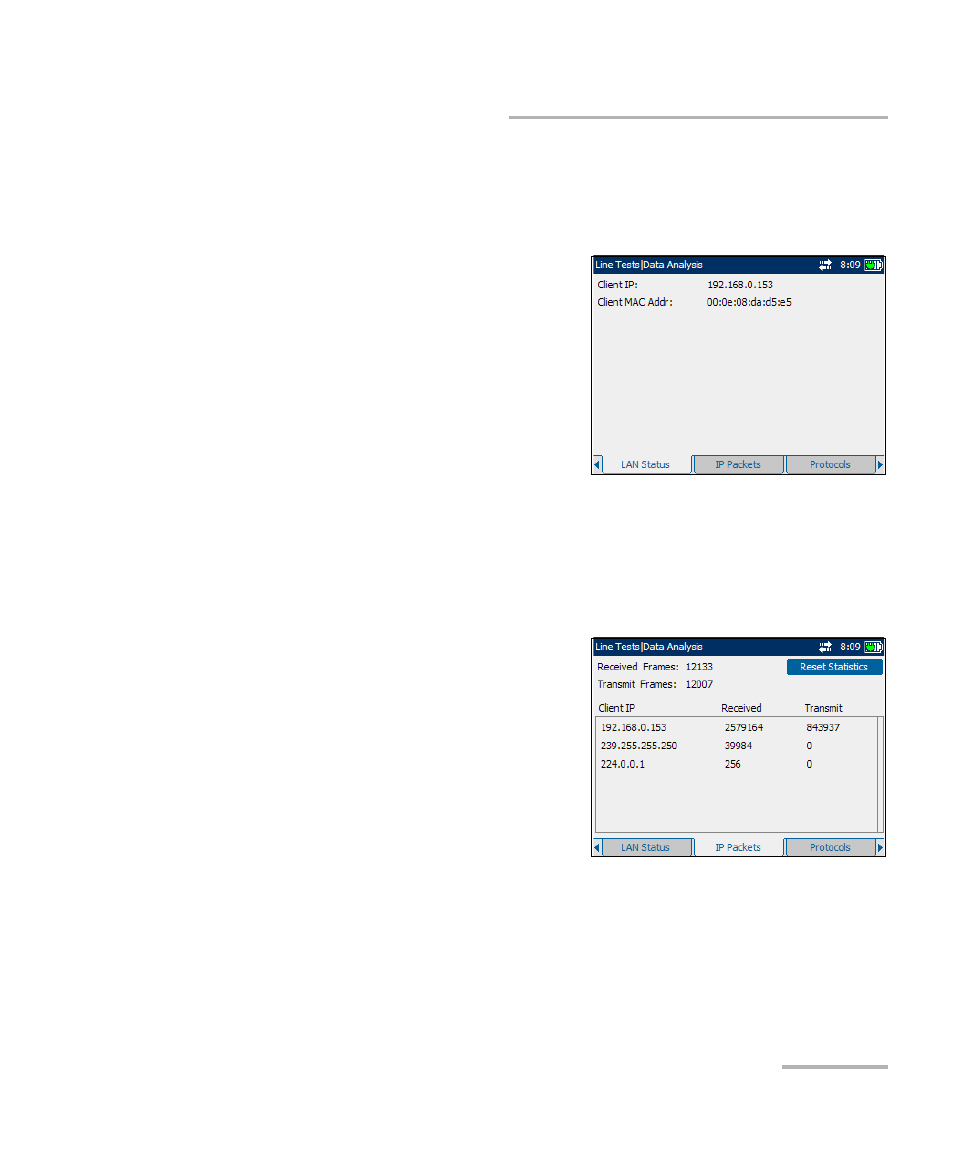

The LAN Status tab allows you to view the customer information
configured for the local area network (LAN).
The available information is as
follows:
³
Client IP is the IP address of the
network device connected to the
LAN port.
³
Client MAC Addr is the MAC
address of the network device
connected to the LAN port.
³
LAN IP is the local network IP address of the unit.
³
LAN SubMask is the network address mask used to identify if the IP
address is within the same local area network.
IP Packets
The IP Packets tab allows you to view
the IP traffic statistics summary of the
total amount of data Received (being
addressed to) and sent (Transmit) for
each Client IP address.
³
Client IP the source IP address of
the different requests.
³
Reset Statistics button clears all
monitoring information.
