Configure Tests for IP Triple-Play Verification
IP Triple-Play Test Set 29
Configure Line Tests

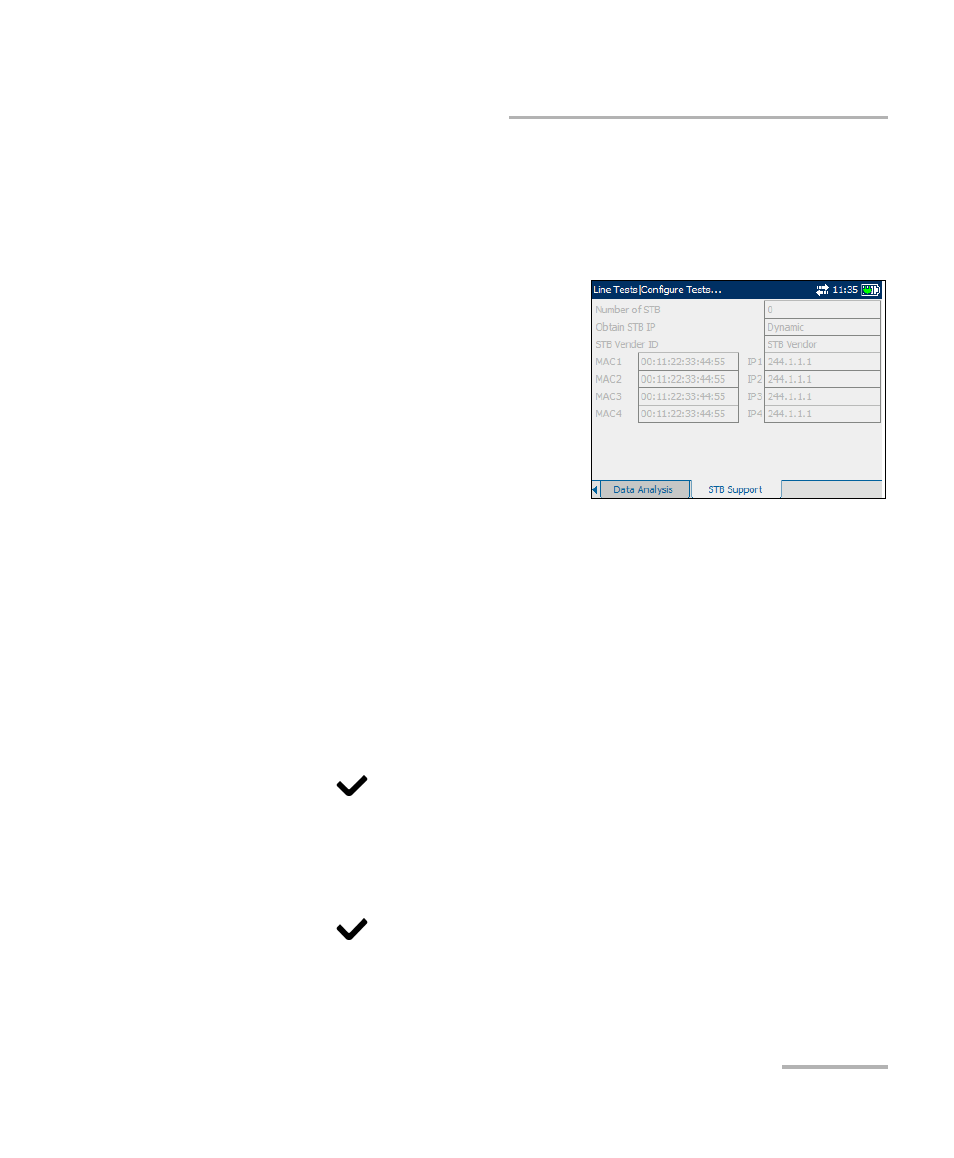

STB Support
The STB Support tab allows you to specify the network addresses for up to
four set-top boxes to be emulated. This pane is active only for bridged
access mode.
The available parameters are the
following:
³
Number of STB is the quantity of
set top boxes (maximum 4) to be
emulated by the unit at the testing
location.
³
Obtain STB IP is either Dynamic
where the access concentrator or
broadband remote access server
assigns a temporary IP address to the set top box, or Static where you
enter the IP address of the set top box.
³
STB Vendor ID is the name of the set top box, maximum
80 characters. This entry is unavailable if Obtain STB IP is set to Static.
³
MAC1-4 is the MAC address for each specified set top box.
³
IP1-4 is the IP address for each set top box that has been specified.
To select the STB support parameters to configure:
1. Press the up/down, left/right arrows to select the desired parameter.
2. Press to open the list or modify the parameter.
3. In the list, press the up/down arrows to select the function or mode.
OR
Use the alphanumeric keypad to enter the value you want to specify.
4. Press to confirm the selection.
