IPTV Analysis
IP Triple-Play Test Set 49
Reading Results

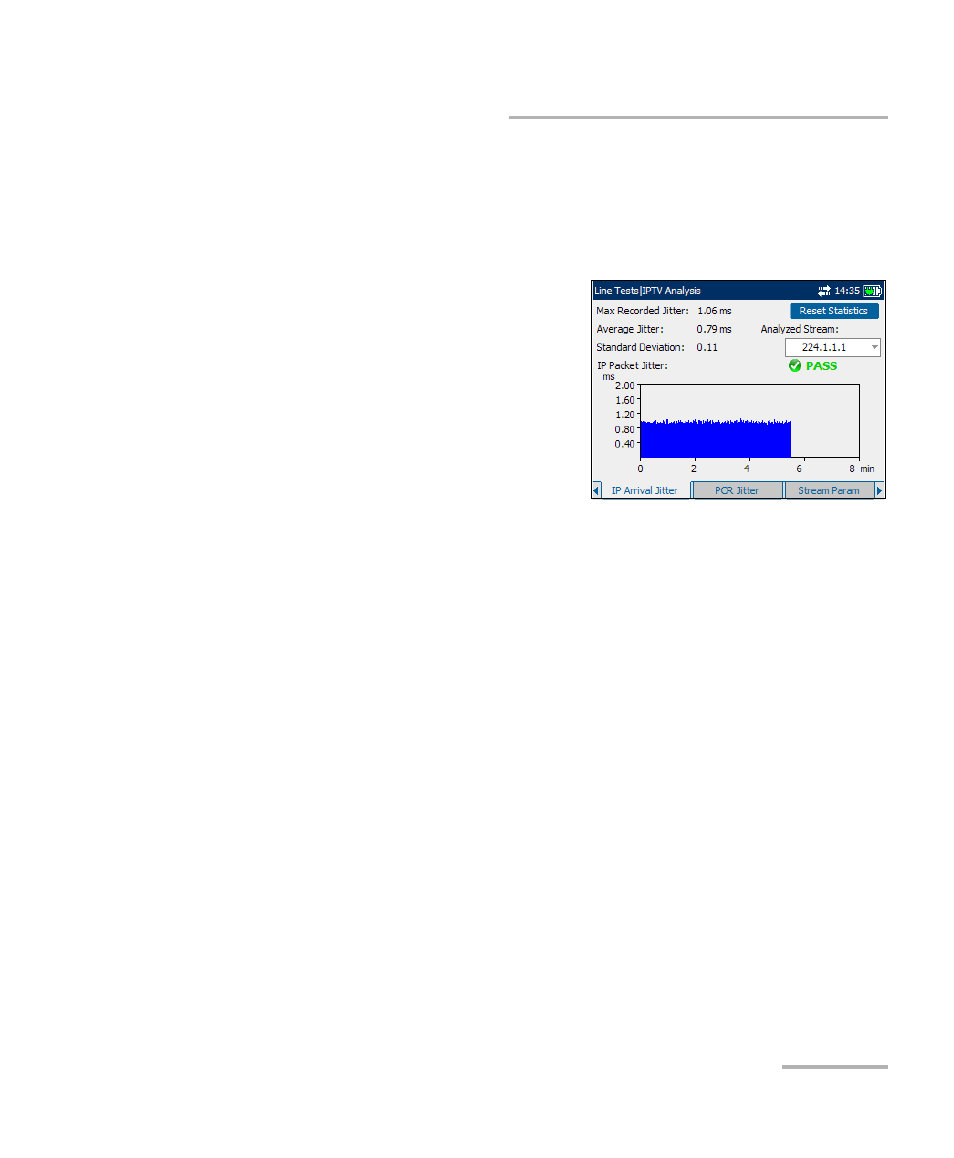

IP Arrival Jitter
The IP Arrival Jitter tab allows you to view the PASS/FAIL status of the
registered IP Packet Jitter for the video stream with a selected multicast IP
address assigned to the specific video channel or Analyzed Stream.
The available test results are the
following:
³
Max Recorded Jitter is the
maximum jitter detected, in ms.
³
Average Jitter is the continuous
running average of the jitter
detected, in ms.
³
Standard Deviation is based on
the continuous sample size.
³
Reset Statistics button clears all monitoring values.
The default monitoring interval is 8 minutes.
