Running CPE Tests
34 AXS-200/650
Reading Results

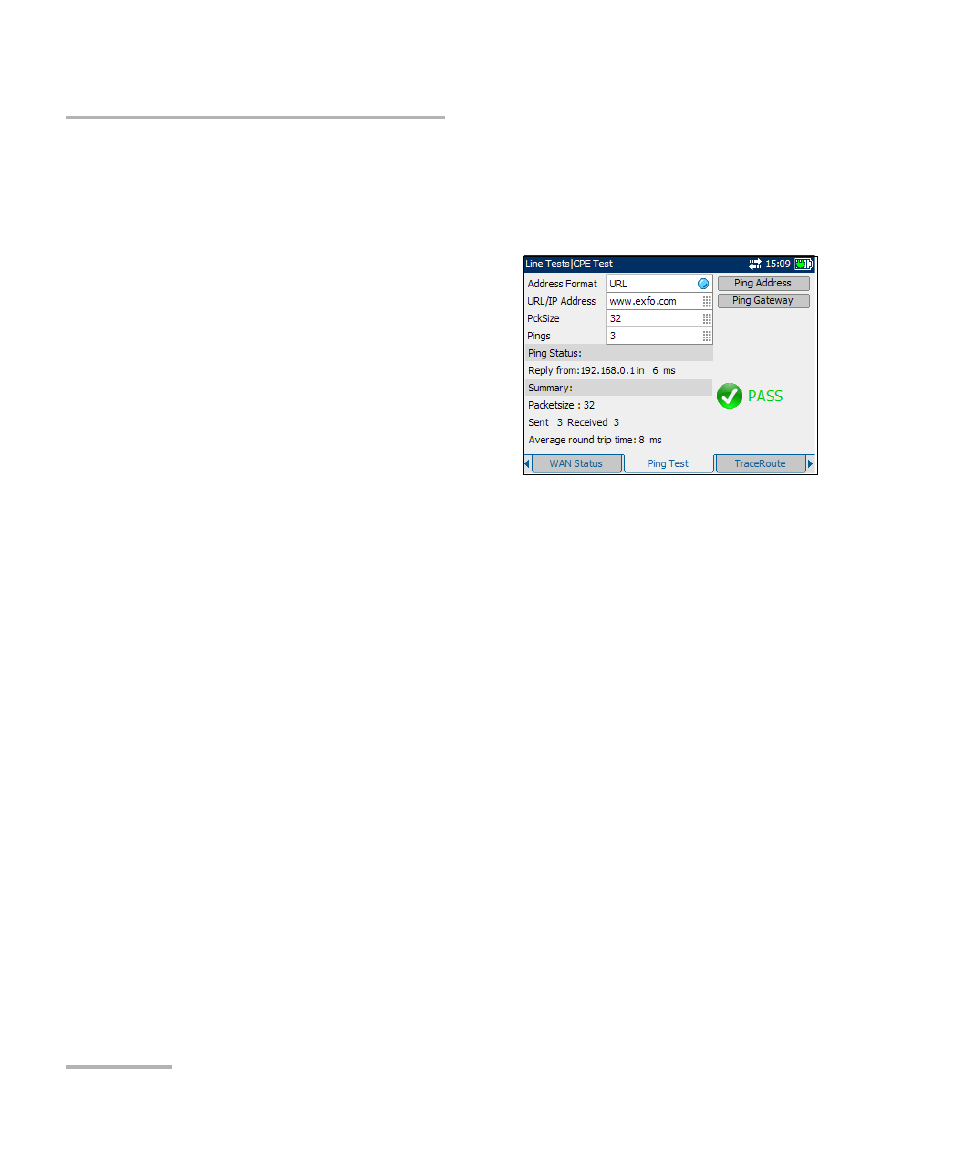

Ping Test
The Ping Test tab allows you to view the PASS/FAIL summary status of
either a Ping Address or Ping Gateway.
The available test results are the
following:
³
Address Format lists either the
URL or IP Address where the unit
pings.
³
URL/IP Address is the IP address
(a.b.c.d) or domain name
(www.abcd.com) of the
destination being pinged.
³
PckSize is the number of bytes sent in one packet ranging from
32 through 1200 (default is 32 bytes).
³
Pings display the total number of ping requests to be sent.
³
Ping Status is the duration in milliseconds (ms) it took the data to
come back from the destination device.
³
Summary:
³
Packetsize displays the size of the Ping packet as selected.
³
Sent/Received: shows the number of packets sent versus the
number of packets received.
³
Average round trip time is the duration in milliseconds (ms) it
took the data to reach the destination device and come back.
