2 Getting Started with Ethernet
Testing
The AXS-200/650 not only verifies service and connectivity to the DSLAM,
but also executes upstream and downstream performance measurements
such as actual data rates, attenuation, and noise margin. In addition, it
provides advanced IPTV measurements such as packet jitter and loss, PCR
jitter, MDI, PID viewer and IGMP zap time; and also supports higher layer
testing such as ping, traceroute and web download speed.
IP Tests
Ethernet tests include the Auto Test function, CPE tests and IPTV, data, and
VoIP analyses.

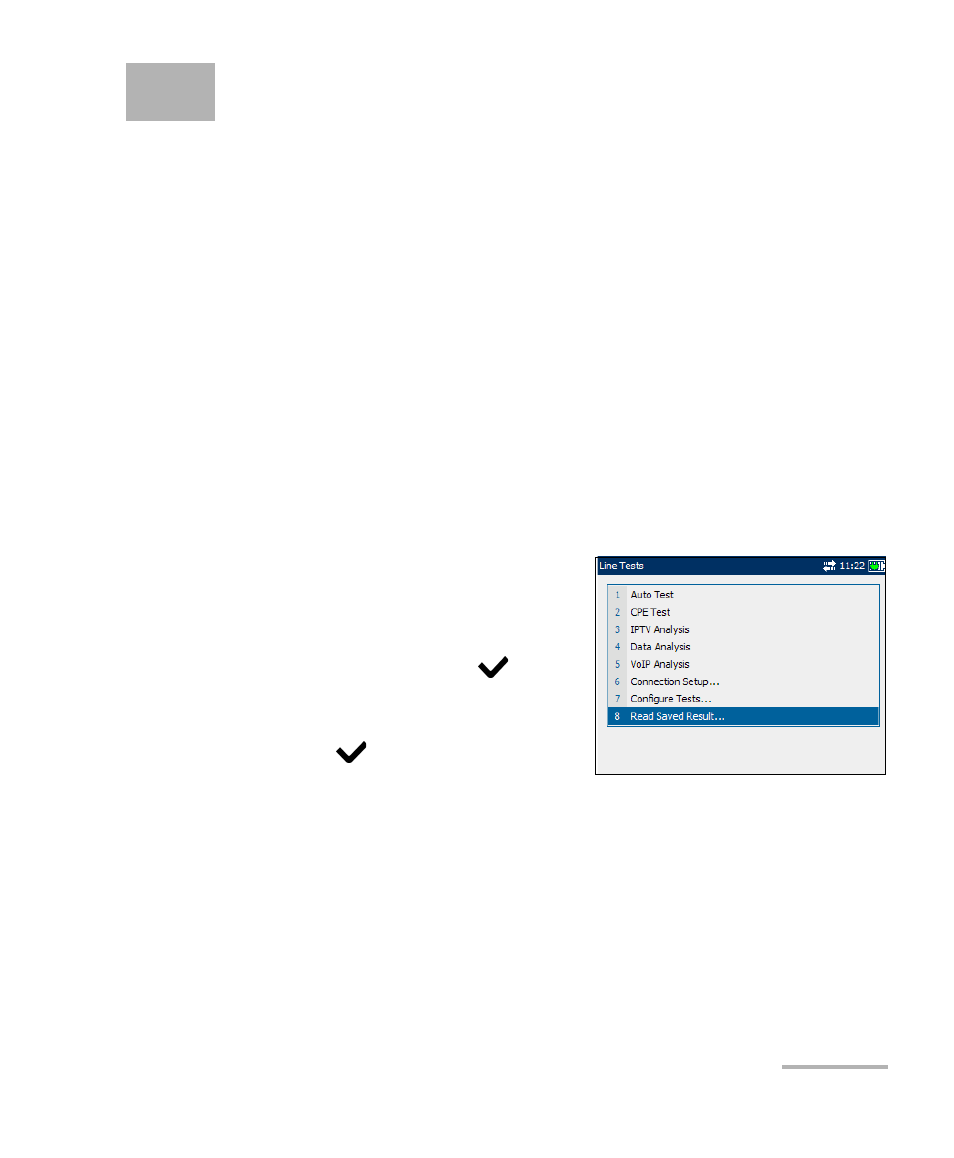

Line Tests Menu
The Line Tests pane lists all the test capabilities of the unit.
To access the Ethernet-based
tests:
1. From the Home page, use the up
or down arrow key to highlight
Line Tests, then press
.
2. From the Line Tests pane,
highlight the desired item and
press
OR
press the corresponding item number.
When selected, each of the five tests starts, using the connection setup
from the current profile.
³
Connection Setup allows you to setup a series of connection
parameters for Auto Test and CPE testing, IPTV, data, and VoIP
analyses beginning with the Select Profile tab.
