IPTV Analysis
IP Triple-Play Test Set 43
Reading Results

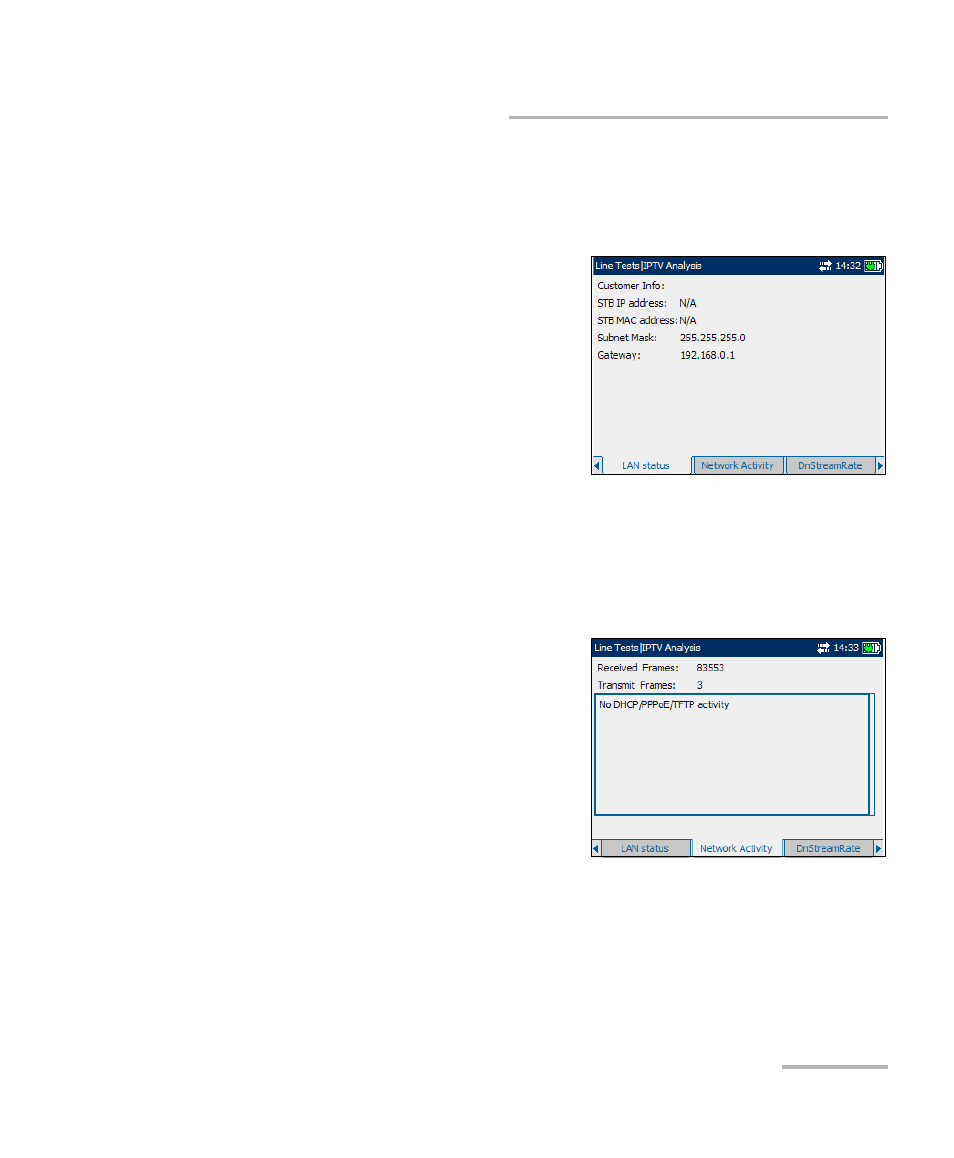

LAN Status
The LAN Status tab allows you to view the Customer Info configured for
the local area network (LAN).
The available information is as
follows:
³
STB IP address is the IP address
of the set-top box (STB)
connected to the LAN port.
³
STB MAC address is the MAC
address of the STB connected to
the LAN port.
³
Subnet Mask is the network address used to identify if the IP address is
within the same local area network.
³
Gateway is the IP address of the default gateway.
Network Activity
The Network Activity tab allows you to
view the PPPoE (point-to-point
protocol over Ethernet), DHCP
(dynamic host configuration protocol)
and TFTP (trivial file transfer protocol)
mode sessions resulting from the
video tests.
