1 - 8 System Map: LCD Panel Open - Model B
Quick Start Guide
1

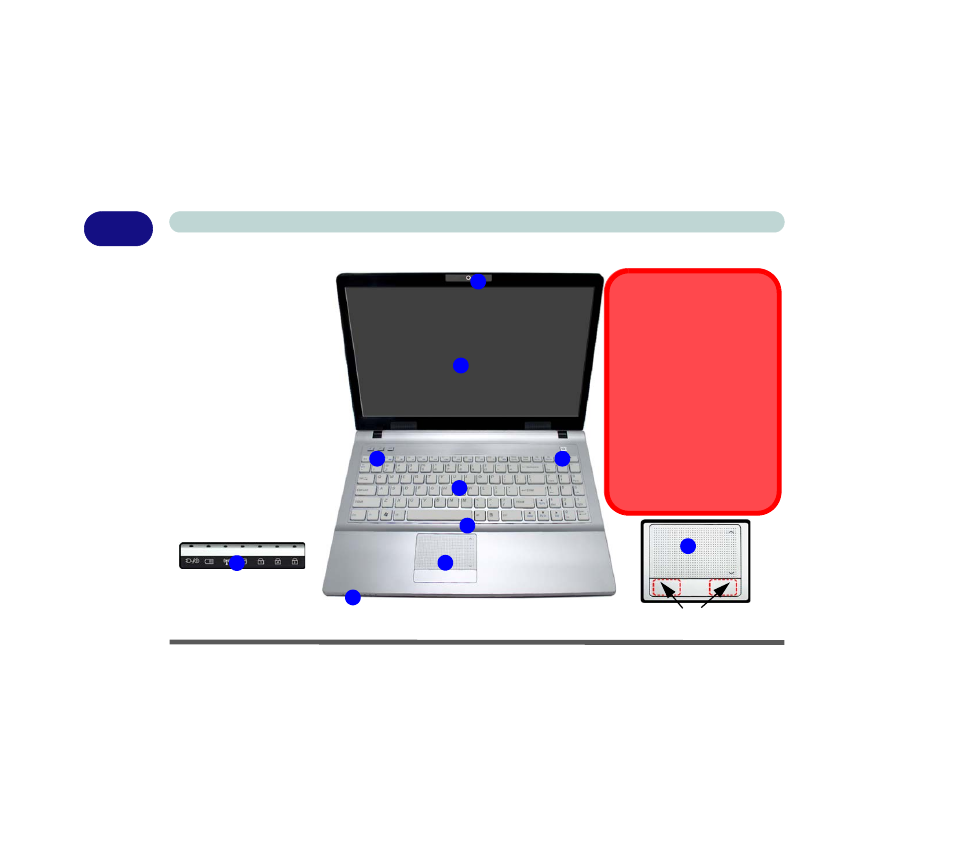

System Map: LCD Panel Open - Model B
Figure 1 - 3
LCD Panel Open
(Model B Computers)
1. Built-In PC Camera
2. LCD
3. Power Button
4. Hot Key Buttons
5. Keyboard
6. Built-In Microphone
7. Touchpad &
Buttons
8. LED Indicators
Note: The Fingerprint
Reader module is also an
option for Model B com-
puters.
8
2
4
1
6
7
3
5
Wireless Device
Operation Aboard Aircraft
The use of any portable electronic
transmission devices aboard air-
craft is usually prohibited. Make
sure the module(s) are OFF if you
are using the computer aboard air-
craft.
Use the key combinations to toggle
power to the 3.75G/HSPA/WLAN/
Bluetooth modules, and check the
LED indicator icon to see if the
modules are powered on or not
(see
Table 1 - 6, on page 1 - 13 /
Table 1 - 4, on page 1 - 9 ).
Touchpad Buttons (valid operation area)
7
8
