System Map: LCD Panel Open - Model A 1 - 7
Quick Start Guide
1

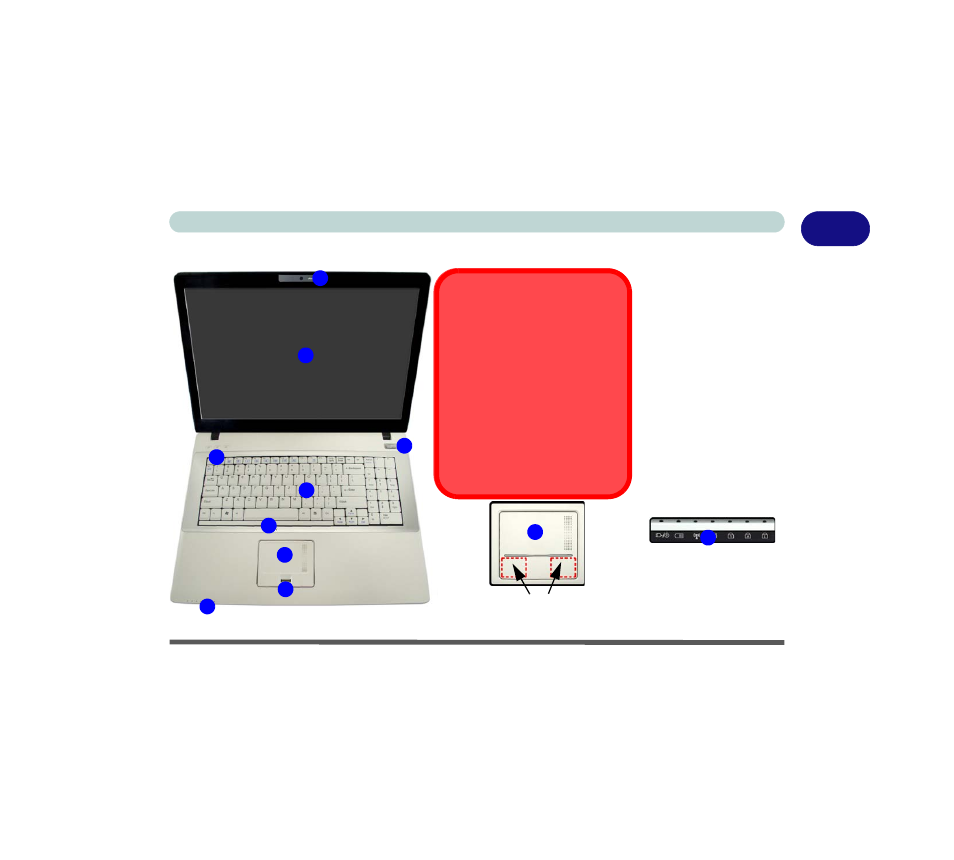

System Map: LCD Panel Open - Model A
Figure 1 - 2
LCD Panel Open
(Model A Computers)
1. Built-In PC Camera
2. LCD
3. Power Button
4. Hot Key Buttons
5. Keyboard
6. Built-In Microphone
7. Touchpad &
Buttons
8. Fingerprint Module
(Optional)
9. LED Indicators
9
2
4
1
6
7
3
5
Wireless Device
Operation Aboard Aircraft
The use of any portable electronic trans-
mission devices aboard aircraft is usually
prohibited. Make sure the module(s) are
OFF if you are using the computer aboard
aircraft.
Use the key combinations to toggle power
to the 3.75G/HSPA/WLAN/Bluetooth
modules, and check the LED indicator
icon to see if the modules are powered on
or not (see
Table 1 - 6, on page 1 - 13 /
Table 1 - 4, on page 1 - 9 ).
Touchpad Buttons
(valid operation area)
7
9
8
