1 - 18 System Map: Right View
Quick Start Guide
1
System Map: Right View

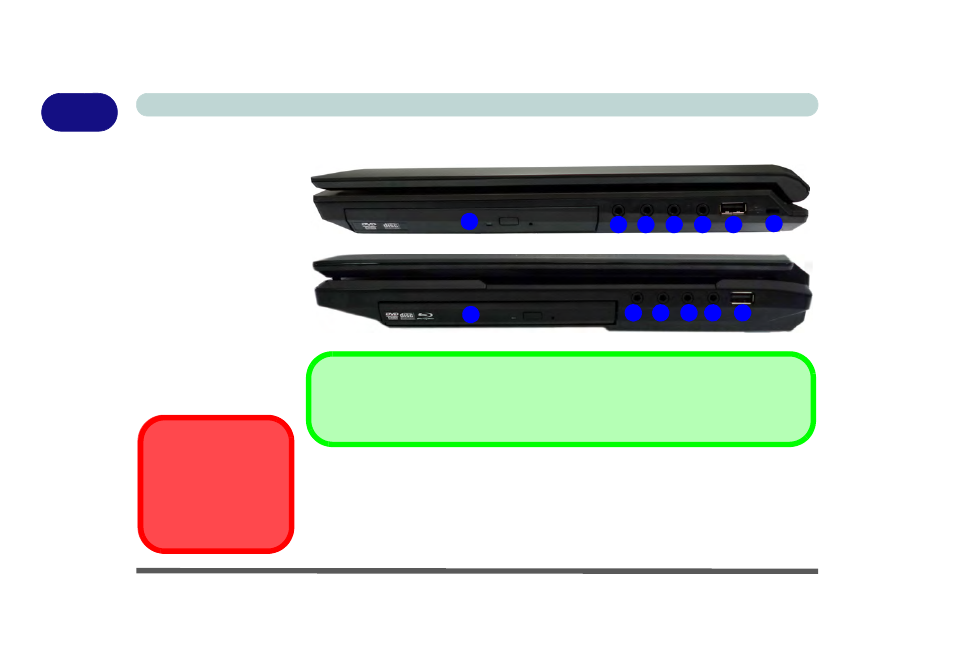

Figure 1 - 8
Right View
1. Optical Device
Drive Bay
2. Headphone Jack
3. Microphone Jack
4. S/PDIF-Out Jack
5. Line-In Jack
6. 1 * USB 2.0 Port
7. Security Lock Slot
(Models A & B
Only)

USB Ports
Note that the connections
to the USB ports only fit
one way, do not force
them.
1 3 4 2 6 7 5

USB 2.0 or 3.0 Ports
USB 3.0 ports are denoted by their blue color; USB 2.0 ports are colored black.
1 3 4 2 6 5
Models A & B
Model C
