Drivers & Utilities
RAID Mode Configuration 4 - 7
4
RAID Mode Setup
1. Install two identical hard disk drives (see the note below for Parallel ATA Hard Disks).

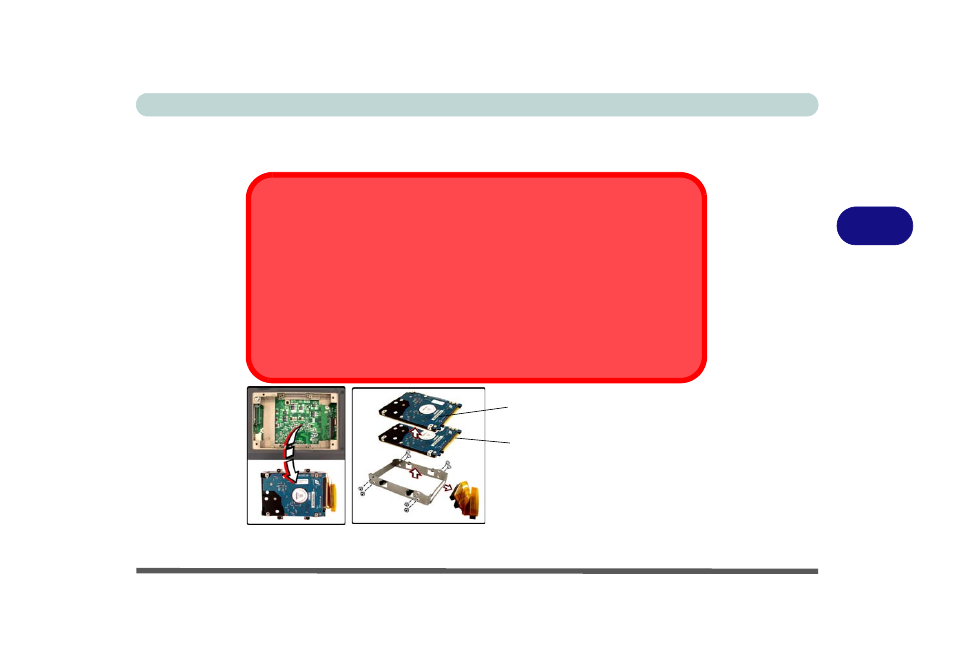

Jumper Settings for Two Parallel ATA Hard Disks
If you are using Parallel ATA (PATA) hard disk drives. then set the jumper on the
Slave hard disk to the Cable Select option in order for the system to recognize the
disks (see your hard disk manual or the information printed on the hard disk itself
for details on the jumper settings). The Slave disk will automatically be in the upper
slot of the hard disk bracket, the Master will be in the lower slot (as defined by the
hard disk cable).
See Chapter 6: “Upgrading the Hard Disk Drive(s)” on page 6 - 4 for instruc-
tions on removing the hard disk.
Slave
Master
(Upper Slot)
(Lower Slot)
Figure 4 - 4
Parallel ATA Hard
Disks (Slave/
Master)
