System Map: Top View with LCD Panel Open

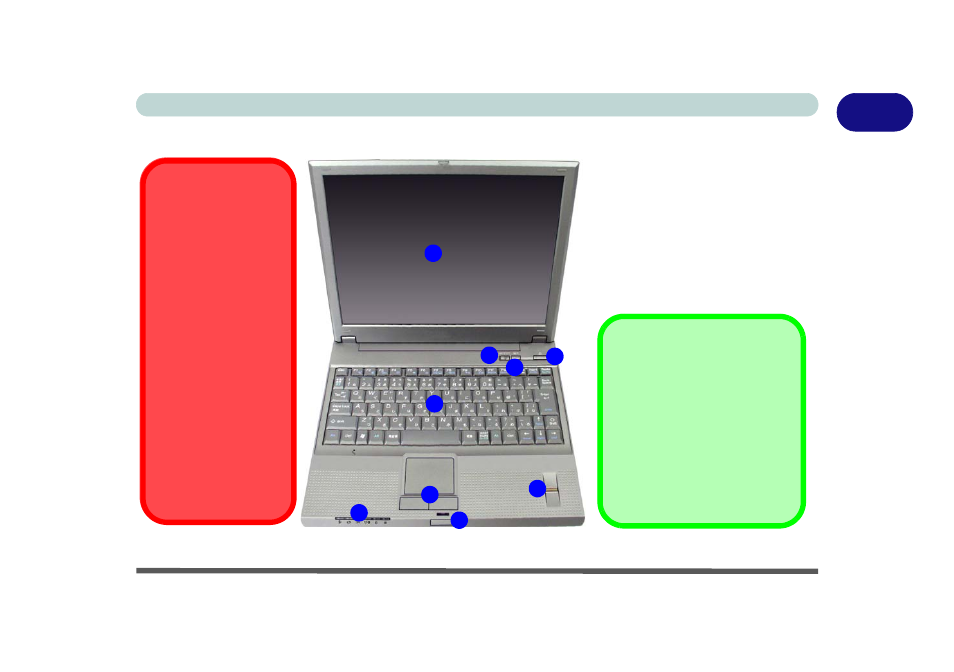

Figure 1 - 2 - Top View with LCD Panel Open
1
4
7
2
5
8
6
1. LCD
2. WLAN Power Switch
3. TouchPad Power Button
4. Power Button
5. Keyboard
6. TouchPad and Buttons
7. Fingerprint Reader
8. LED Indicators
9. LCD Latch
Wireless Device
Operation Aboard
Aircraft
The use of any portable
electronic transmission de-
vices aboard aircraft is usu-
ally prohibited. Make sure
the module(s) are OFF if
you are using the computer
aboard aircraft.
Use the key combination/
switch to toggle power to
the WLAN/Bluetooth mod-
ules, and check the status
indicator icon to see if the
module is powered on or
not (see
Table 1 - 1, on
page 1 - 6 / Table 1 - 2, on
page 1 - 7 / Table 1 - 3, on
page 1 - 8 ).
3
9
Security Modules
The encrypted channel between
the Trusted Platform Module
security chip and the fingerprint
reader with Protector Suite
Software provides a high level of
security for your computer. See
“Security Modules (Fingerprint
& TPM)” on page 7 - 6
.
