i

.LON 1000 Internet Server Starter Kit

23

i) The LonMaker tool places that network variable on the functional block,

providing a connection point.

j) Repeat the process outlined in steps 4c through 4i. Create two more input

network variables and an output network variable on the functional block.

Network Variable Name

Created as a compliment to

nviBuildingMode

A | AO- 1 | Switch to Mode Translator| Data_Out

nviControlValue

A | AO- 1 | PID Controller | CV

nvoSetPoint

A | AO- 1 | PID Controller | SP

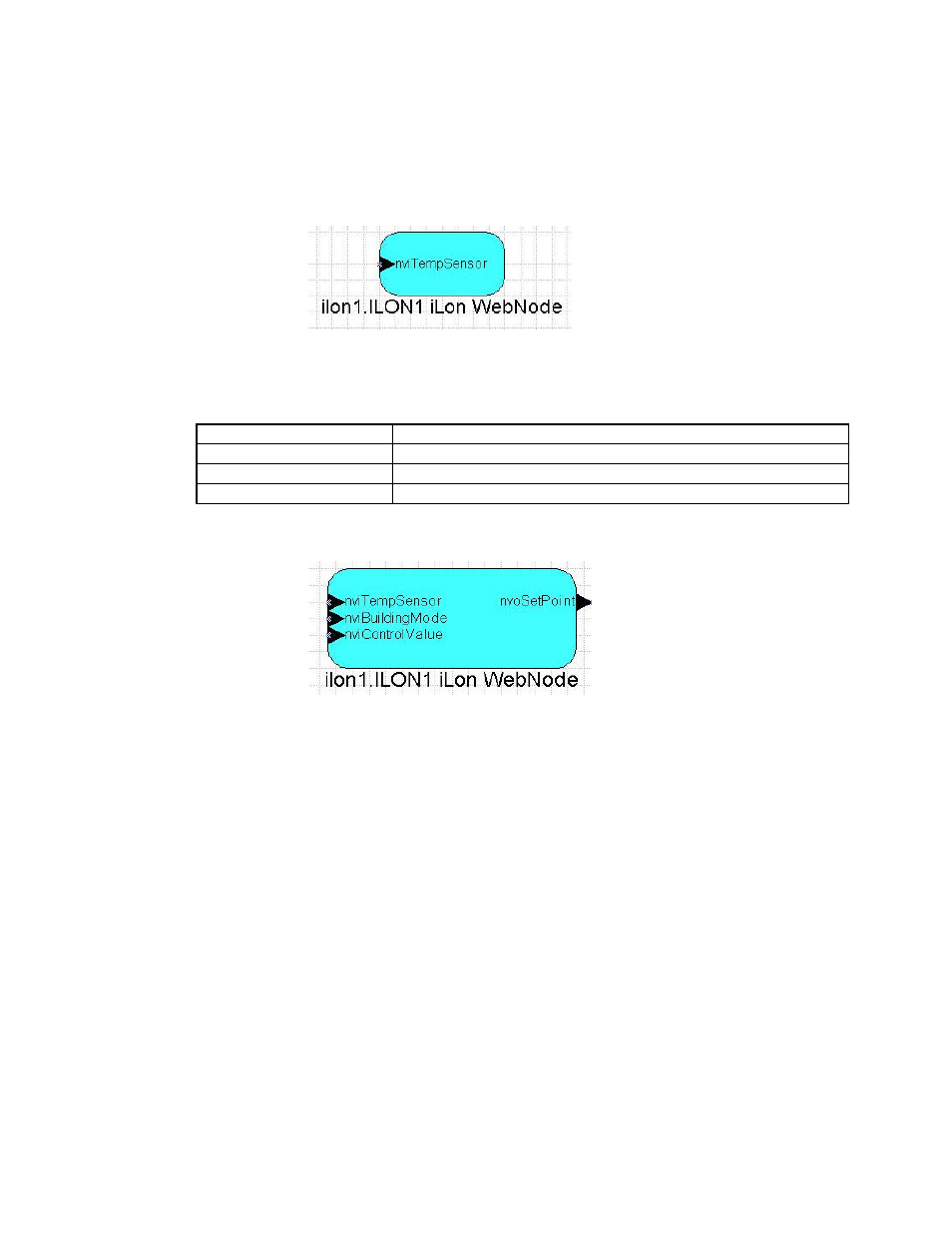

When finished, your functional block should look like this:
