Echelon i.LON 1000 Internet Server User Manual

Page 22

.LON 1000 Internet Serve Starter Kit

The next step is to connect input and output network variables representing the
points to display in your web page to the

.LON 1000. Recall the HMI

application example in Chapter 3 of Getting Started with the L

ORKS

System Starter Kit

. In that example, an HMI application was created that

monitored 4 points. These points were represented by the following::

•

input network variable of the A0-1 PID controller;

•

output network variable of the A0-1 PID controller;

•

Data_Out

from the A0-1 Switch to Mode translator (representing the

building mode); and

•

The temperature sensor’s Analog output.

In order for the

.LON 1000 to monitor these values, you must connect the

existing network variables in the drawing to the

.LON 1000. Do this by adding

.LON 1000 functional block to the drawing. Once complete, your drawing

will look similar to figure 2.5. Steps 4a – 4k provide exact instructions for
placing the functional block.

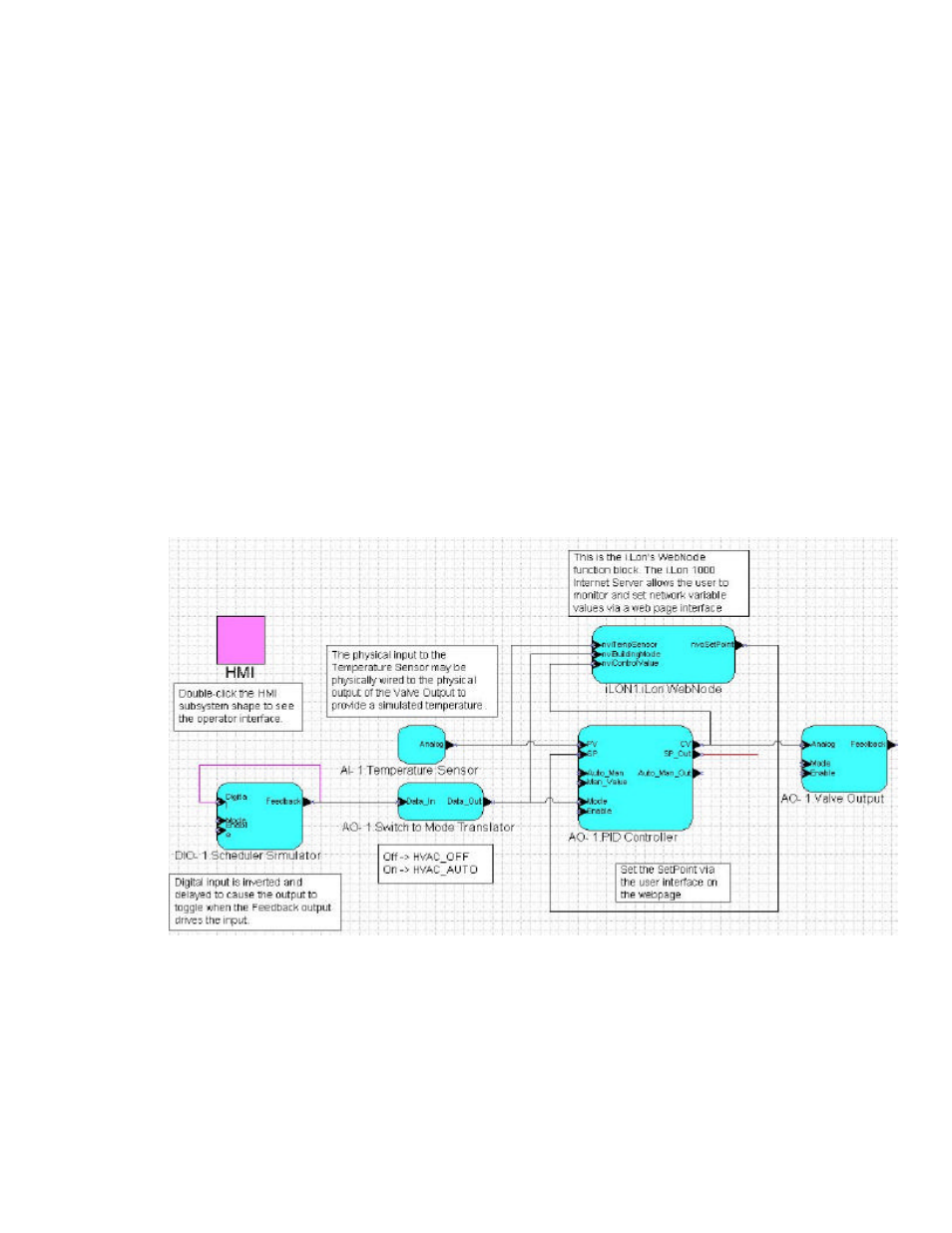

Figure 2.5 LonMaker Drawing Example with Functional Block
