Controls - 51
Backhoe Console
CMW

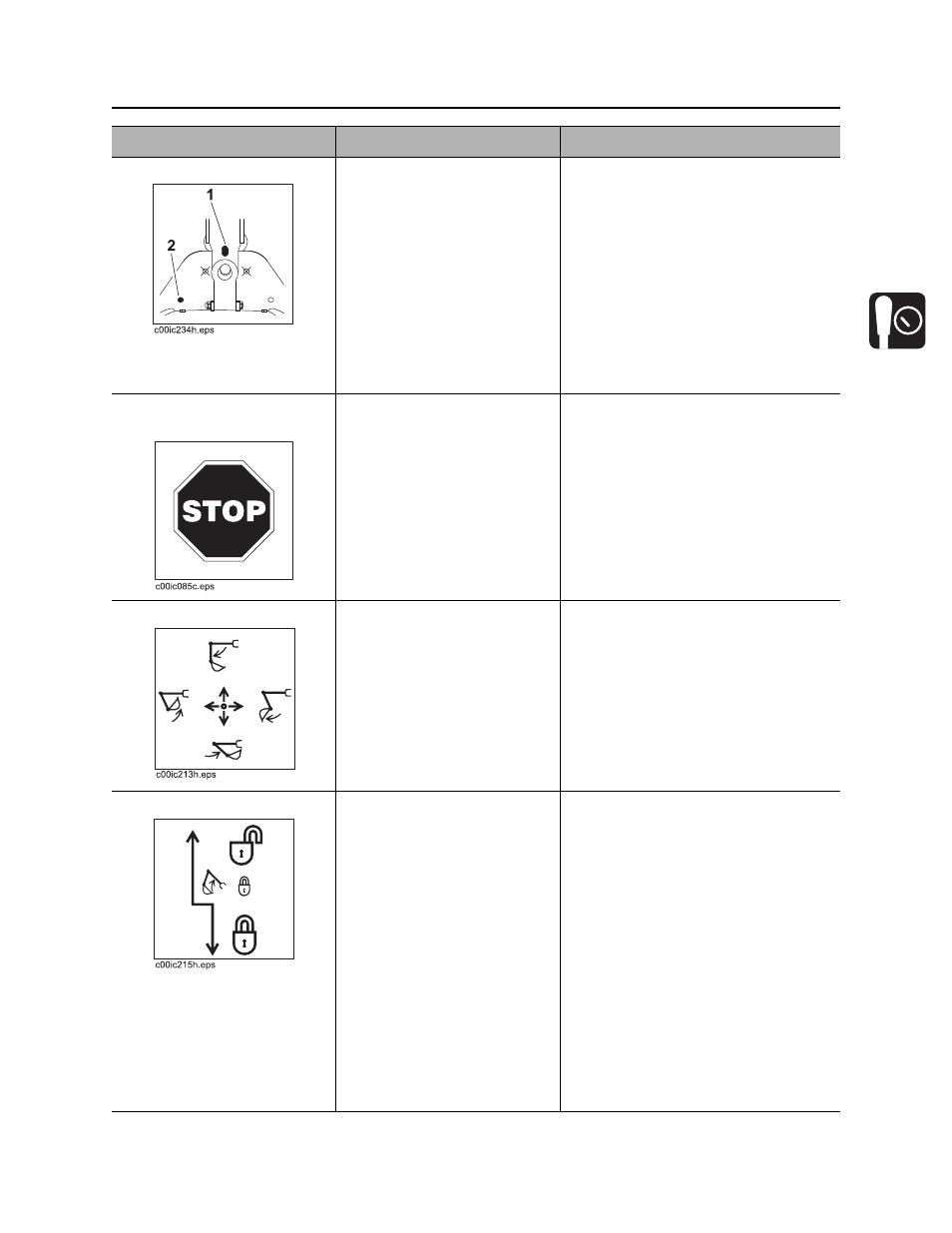

7. Swing lock pin To lock:
• Engage stow lock.
• Insert swing lock pin into
hole (1).
To release:
• Remove pin and store in
hole (2).
• Release stow lock.
This pin locks boom from swinging
during transport.
NOTICE:
Do not store pin in holes
marked with an “X.” Backhoe could
swing and destroy pin.
8. Remote engine stop
switch
Press to stop engine
immediately.
IMPORTANT: For normal engine
shutdown, use ignition switch.
Note: This switch must be returned to
the UP position to allow engine
restarting.
9. Bucket/Dipper control
To open bucket, move right.
To close bucket, move left.
To move dipper in, pull.
To move dipper out, push.
Control can perform more than one
action at a time. By “feathering” the
control, operator can combine
backhoe operations.
10. Stow lock control To lock:
• Raise boom fully.
• Pull stow lock handle.
• Lower boom slightly to
engage lock.
• Insert swing lock pin.
To unlock:
• Remove swing lock pin.
• Raise boom slightly.
• Push stow lock handle to
release lock.
Use this control to lock boom in the up
position.
NOTICE: Always use stow lock and
install swing lock pin during transport.
When unlocked, store swing lock pin
in holder located on left stabilizer
support.
Item Description Notes
