Controls - 27
Center Console
CMW
2. Graphic display
Graphic symbols are displayed for
indicators and conditions previously
shown with gauges. See more information in
“Graphic Display” on page 30.
3. Ignition switch
To start engine, insert key and turn
clockwise.
To stop engine, turn counterclockwise.
IMPORTANT: If engine does not
start on first attempt, check that
all interlock requirements have
been met, return switch to
STOP, and try again.
4. Axle lock switch
To lock rear axle, press top.
To unlock rear axle, press bottom.
NOTICE: To prevent mechanical
damage, stop tractor before
operating axle lock switch.
IMPORTANT: After pressing
switch to unlock axle, it may be
necessary to move tractor 6’ (2
m) in reverse to fully unlock.
5. Service Brake
To stop tractor, press.
To move tractor, release.
6. Foot throttle
To increase engine speed when
driving, press.
To reduce engine speed when driving,
release.
IMPORTANT:
• With dig/drive control in dig,
increasing engine speed
also increases digging chain
speed. This throttle control
provides a temporary
override (increase only) of
the hand throttle control
setting.
• With dig/drive control in
drive, increasing engine
speed also increases
ground drive speed.

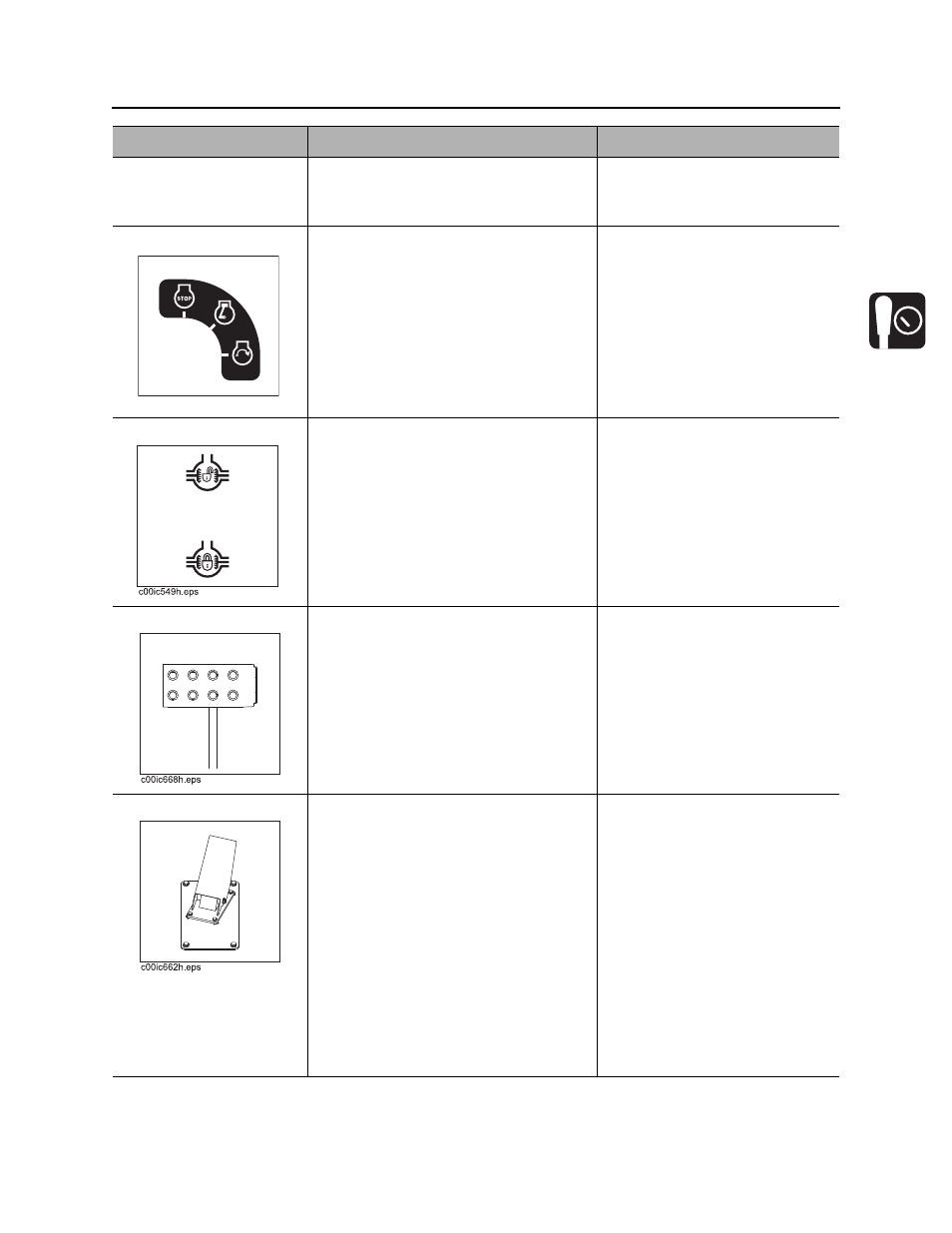

Item Description Notes
c00ic027w.eps
