RT100 Powershift Operator’s Manual
Specifications - 151
M912 Offest Trencher
CMW

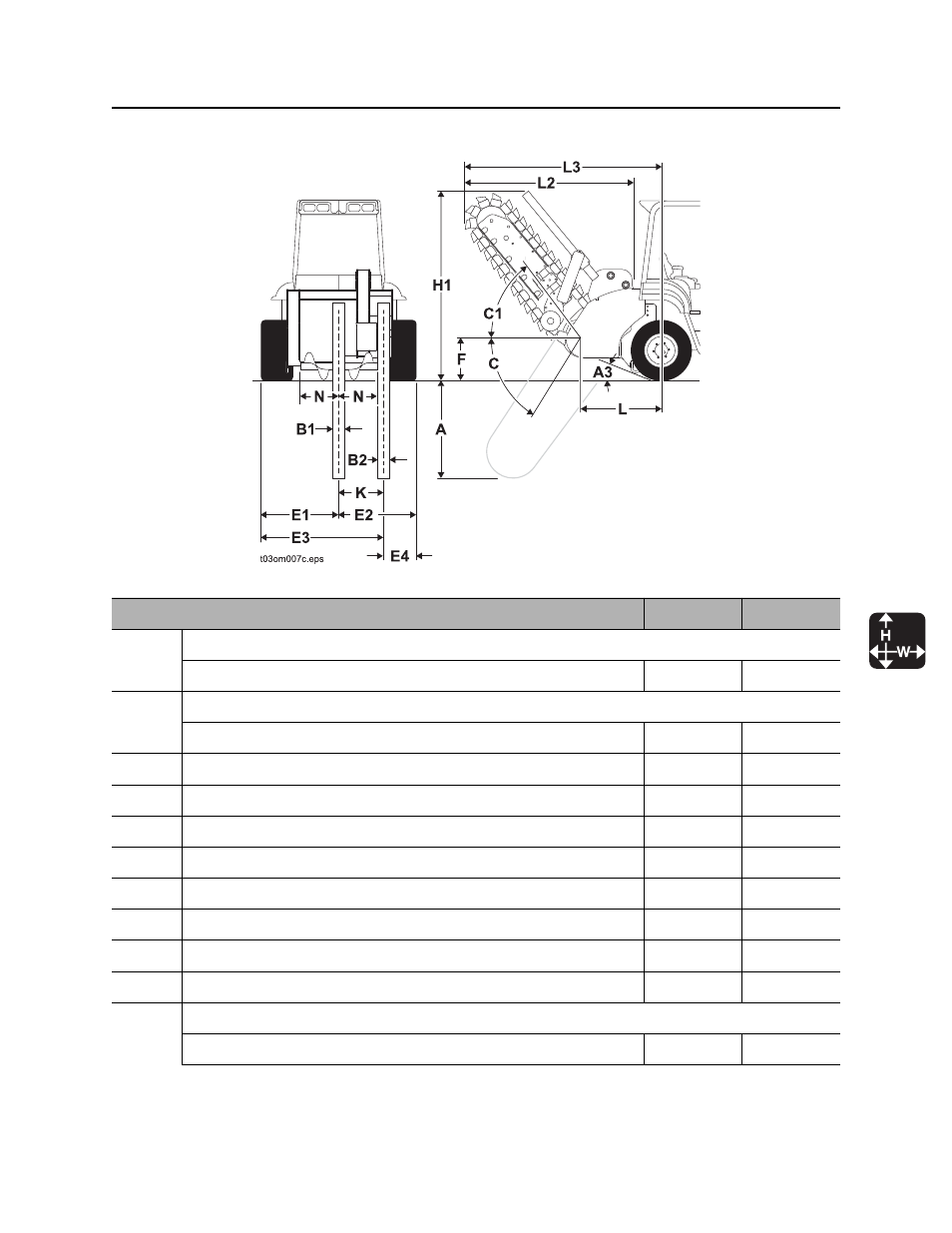

M912 Offest Trencher
Dimensions U.S. Metric
A3 Angle of departure
RT100 with 38 x 18.00-20 tires 28° 28°
A Trench depth, maximum
RT100 with 38 x 18.00-20 tires 97 in 2.47 m
B1 Trench width, center position maximum 24 in 610 mm
B2 Trench width, offset position maximum 12 in 305 mm
C Boom travel down 65° 65°
C1 Boom travel up 50° 50°
E1 Centerline of trench to outside left edge, center position 40 in 1.0 m
E2 Centerline of trench to outside right edge, center position 34 in 864 mm
E3 Centerline of trench to outside left edge, offset position 67 in 1.7 m
E4 Centerline of trench to outside right edge, offset position 8 in 203 mm
F Headshaft height, digging chain
RT100 with 38 x 18.00-20 tires 32 in 810 mm
