Service - 140
RT100 Powershift Operator’s Manual
As Needed
Trencher

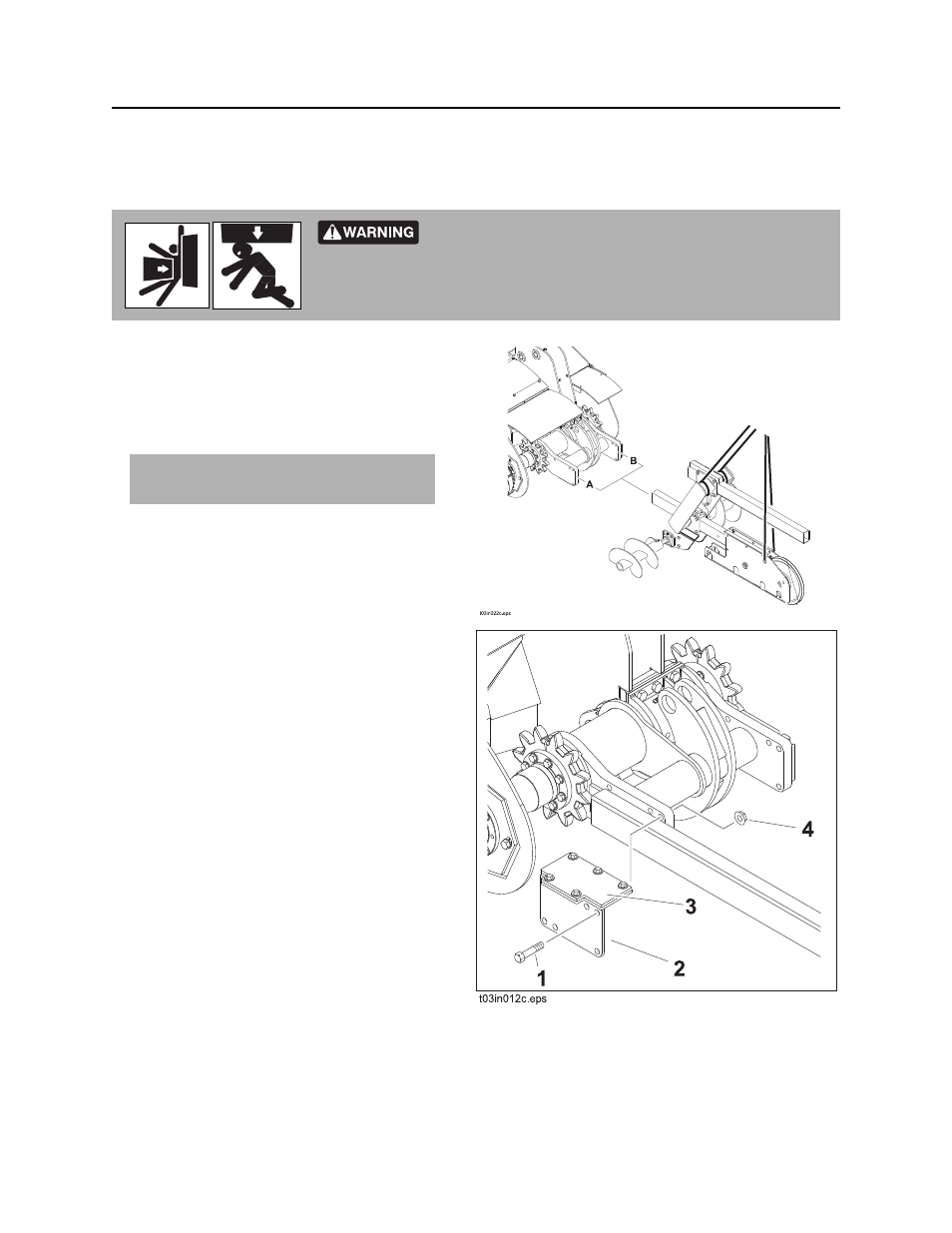

Change Boom Position
1. Remove digging chain. See “Replace Digging
Chain” on page 141.
2. Use hoist to move clamp and boom to
centerline (A) or offset (B) position.
3. Install clamp and boom tube onto pivot arm.
4. Install digging chain. See “Replace Digging
Chain” on page 141.
5. Adjust spoils door following procedure on
page 24.
Crushing weight could cause death or serious injury. Use
proper procedures and equipment or stay away.
NOTICE: Use a hoist capable of supporting equipment’s size and weight.
NOTICE: Mount boom tube on sprocket
side of pivot.
