Getting Started

cPCI-6965

5.6

USB Flash Disk Module Installation

The cPCI-6965 Series supports an onboard USB Flash Disk mod-
ule via the CN5 pin header connector. To install a USB Flash Disk,
follow the procedure below.

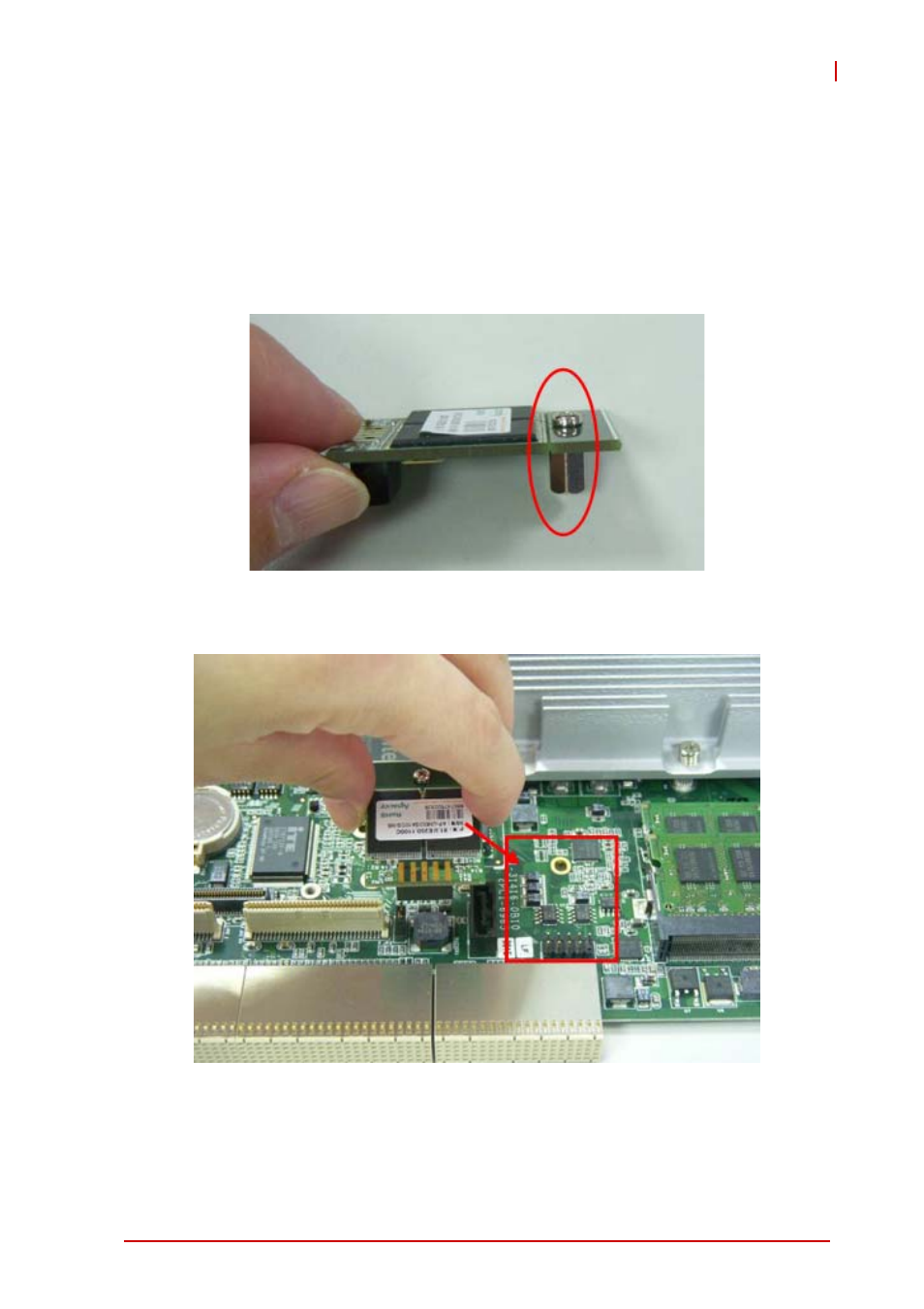

1. Secure the standoff to the underside of the USB module

with the screw provided.

2. Align the USB module with the CN5 pin header and

mounting hole as shown.

3. Insert the USB module onto the pin header and secure

with the screw provided from the solder side of the
cPCI-6965.
