32 Board Interfaces

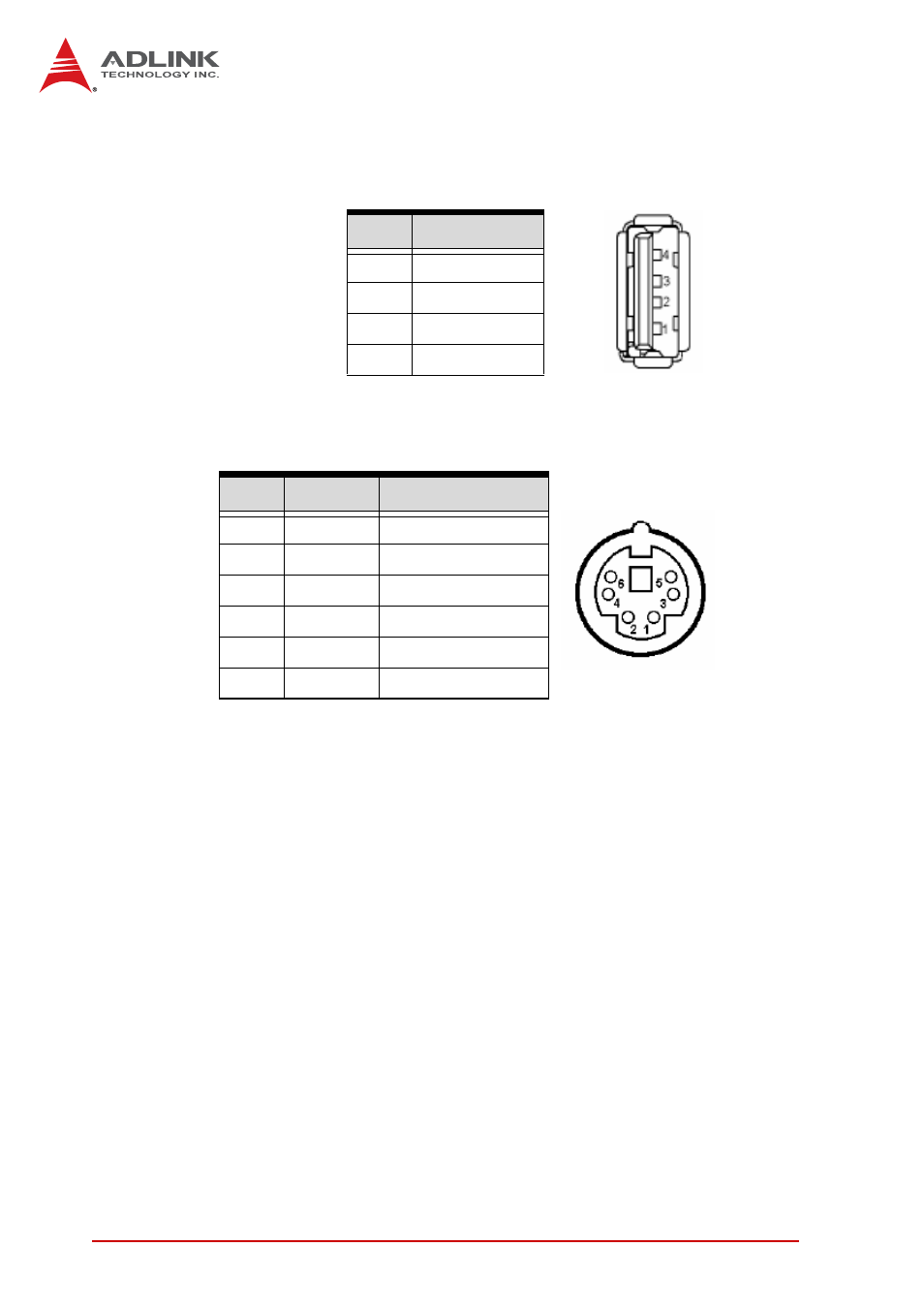

4.9 Connector Pin Assignments
USB Connectors (CN9-12)
Table 4-2: USB Connector Pin Definition
PS/2 Keyboard/Mouse Connector
Table 4-3: PS/2 Keyboard/Mouse Connector Pin Definition
Pin # Signal Name
1 Vcc
2 UV0-
3 UV0+
4 GND
Pin # Signal Function
1 KBDATA Keyboard Data
2 MSDATA Mouse Data
3 GND Ground
4 +5V Power
5 KBCLK Keyboard Clock
6 MSCLK Mouse Clock
