Getting Started

51

cPCI-6965

5.3

CompactFlash Card Installation

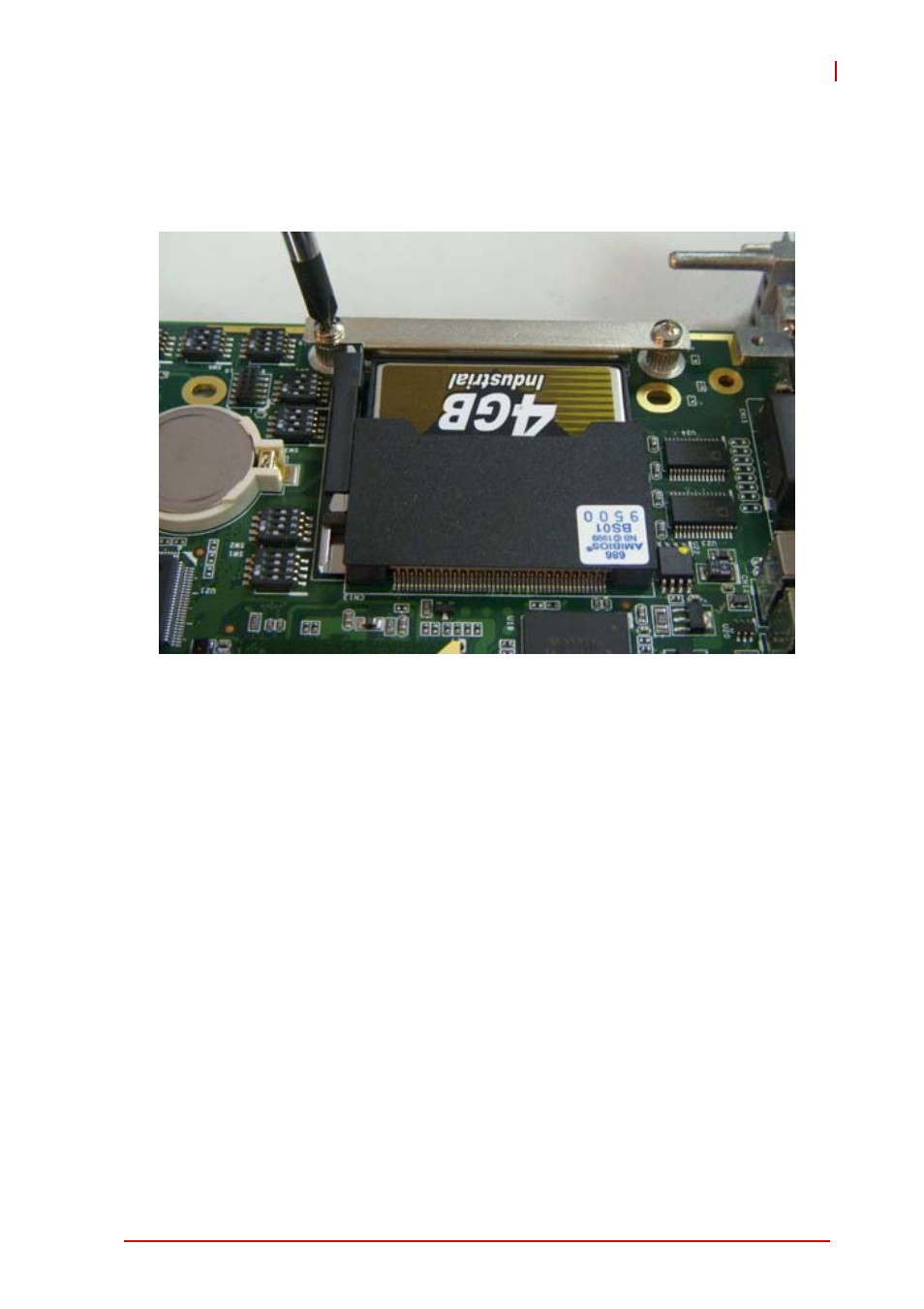

1. Remove the card retaining bracket from board by removing

the two screws as shown.

2. Insert the CF card into the CF slot, then replace the card

retaining bracket to prevent the CF card from sliding out
of the slot.
