Board Interfaces 23
cPCI-6965
4 Board Interfaces
This chapter illustrates the board layout, connector pin
assignments, and jumper settings to familiarize users with the
cPCI-6965 Series.
4.1 cPCI-6965 SBC Board Layout

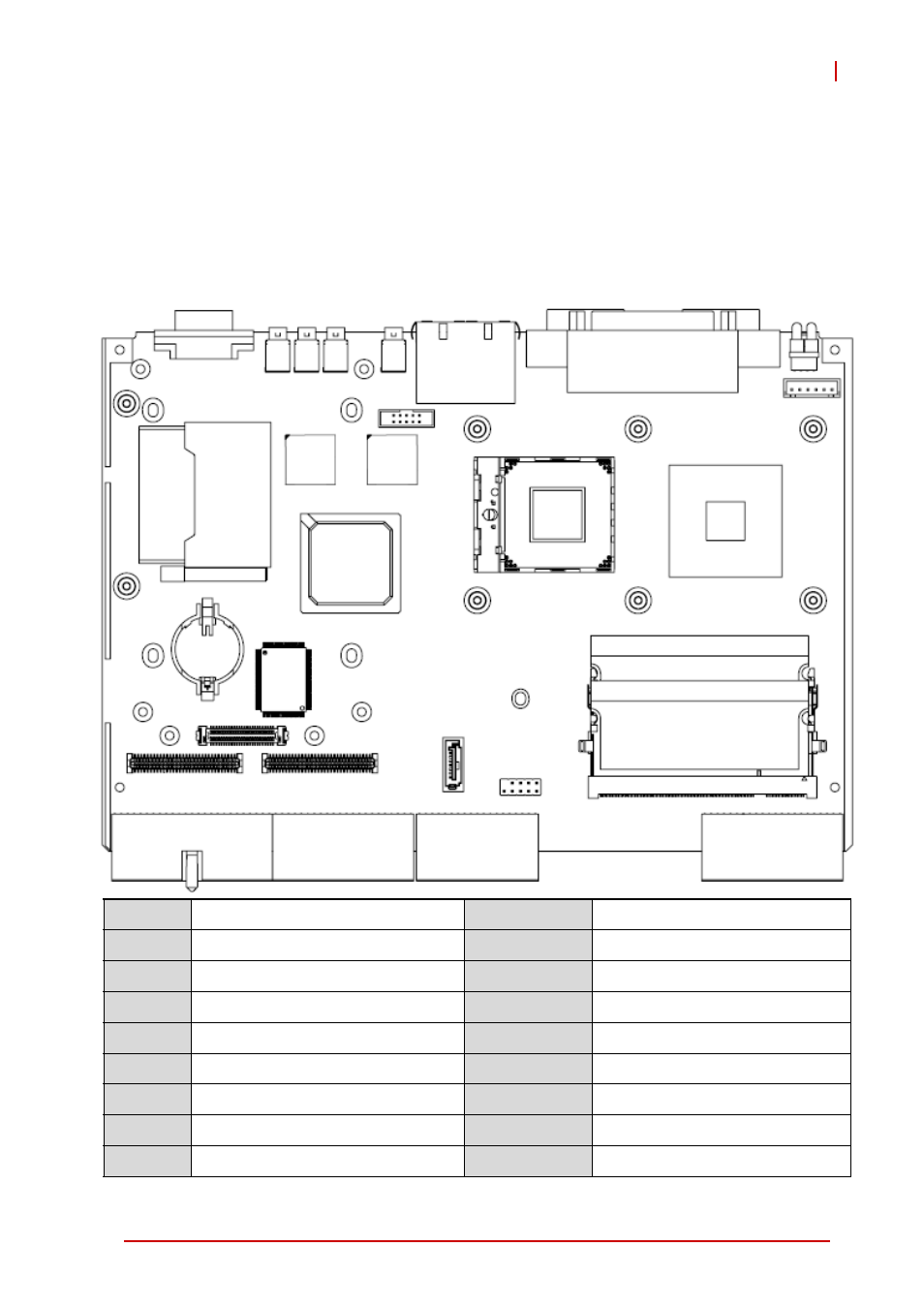

Figure 4-1: cPCI-6965 Board Layout
U10 CPU socket CN3/5 7-pin SATA connector
U4 North Bridge Intel® GME965 CN8/15 Serial ports
U18 South Bridge Intel® ICH8M CN7 DB-6965L2 connector
U16/19 GbE Controller Intel® 82573L CN9~12 USB ports
U21 Super I/O CN13 CF socket
CN1 PS/2 connector CN14 DB-6910SAT connector
CN2/4 DVI connectors JN1/2 DB-6965PMC connector
CN3 Printer port J1/2/3/5 CompactPCI connectors
CN6 Dual RJ-45 GbE ports SODIMM Stacked SO-DIMM sockets
J1
SODIMM
U10
U4
5 J 3 J 2 J
U18
U16 U19
CN13
U21
CN7
CN5
CN8
CN1
JN1 JN2
CN14
CN15
CN6
2 N C 4 N C
CN3
CN10-12 CN9
