7 chipset setup, Usb functions, Usb 2.0 controller – ADLINK cPCI-6965 User Manual

Page 108: Hda controller, Chipset setup

Text mode
Original mode

BIOS Setup Utility

8.7

Chipset Setup

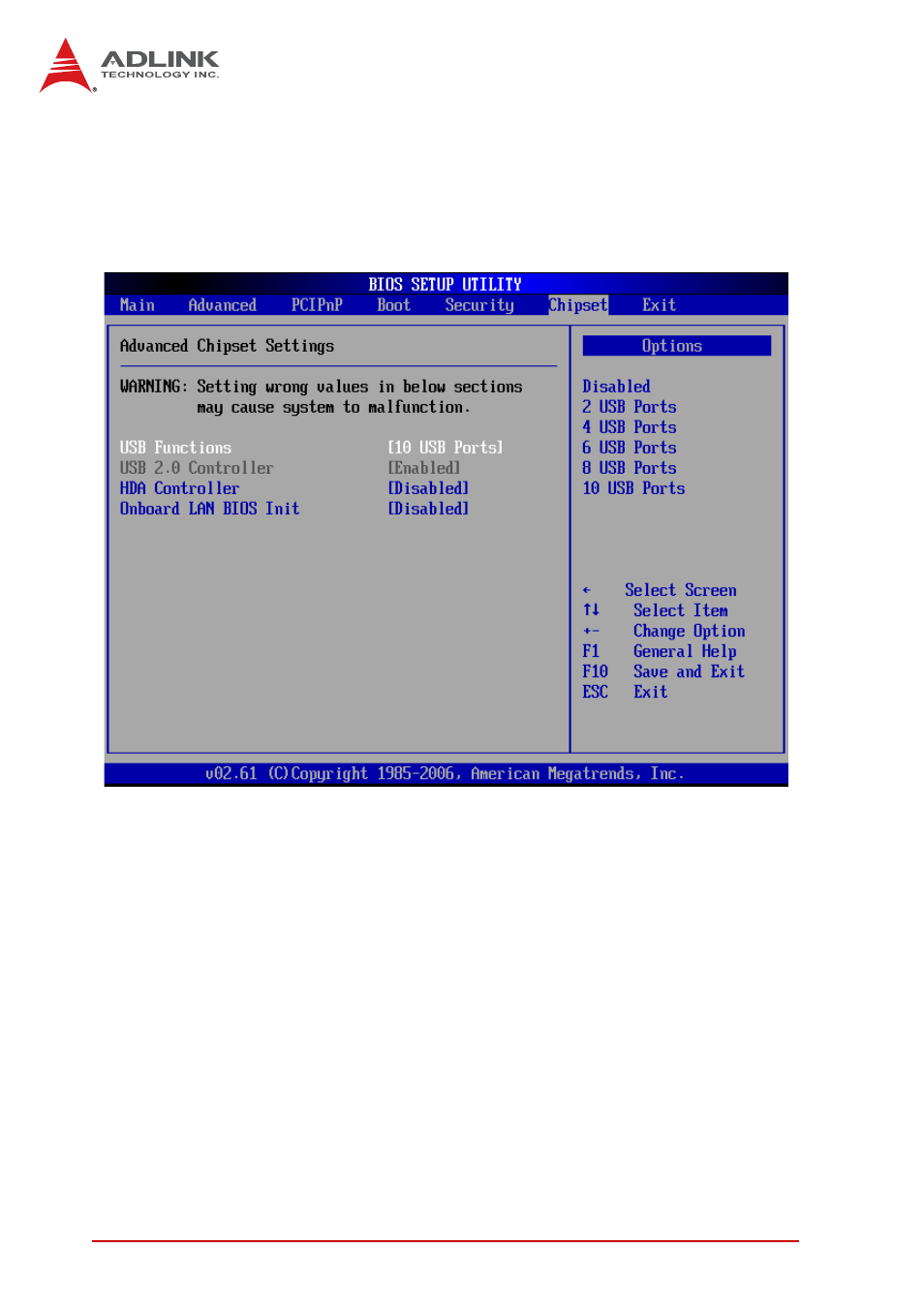

Select the Chipset tab from the setup screen to enter the Chipset
BIOS Setup screen. You can select any of the items in the left
frame of the screen to go to the sub menu for that item. The
Chipset BIOS Setup screen is shown below.

USB Functions

Set this value to allow the system to disable, enable, and select a
set number of onboard USB ports.

USB 2.0 Controller

This option takes effect only when USB Functions are enabled.
Enabling will allow USB 2.0 functionality to all USB ports.

HDA Controller

Set this value to Enable/Disable the HDA Controller.
