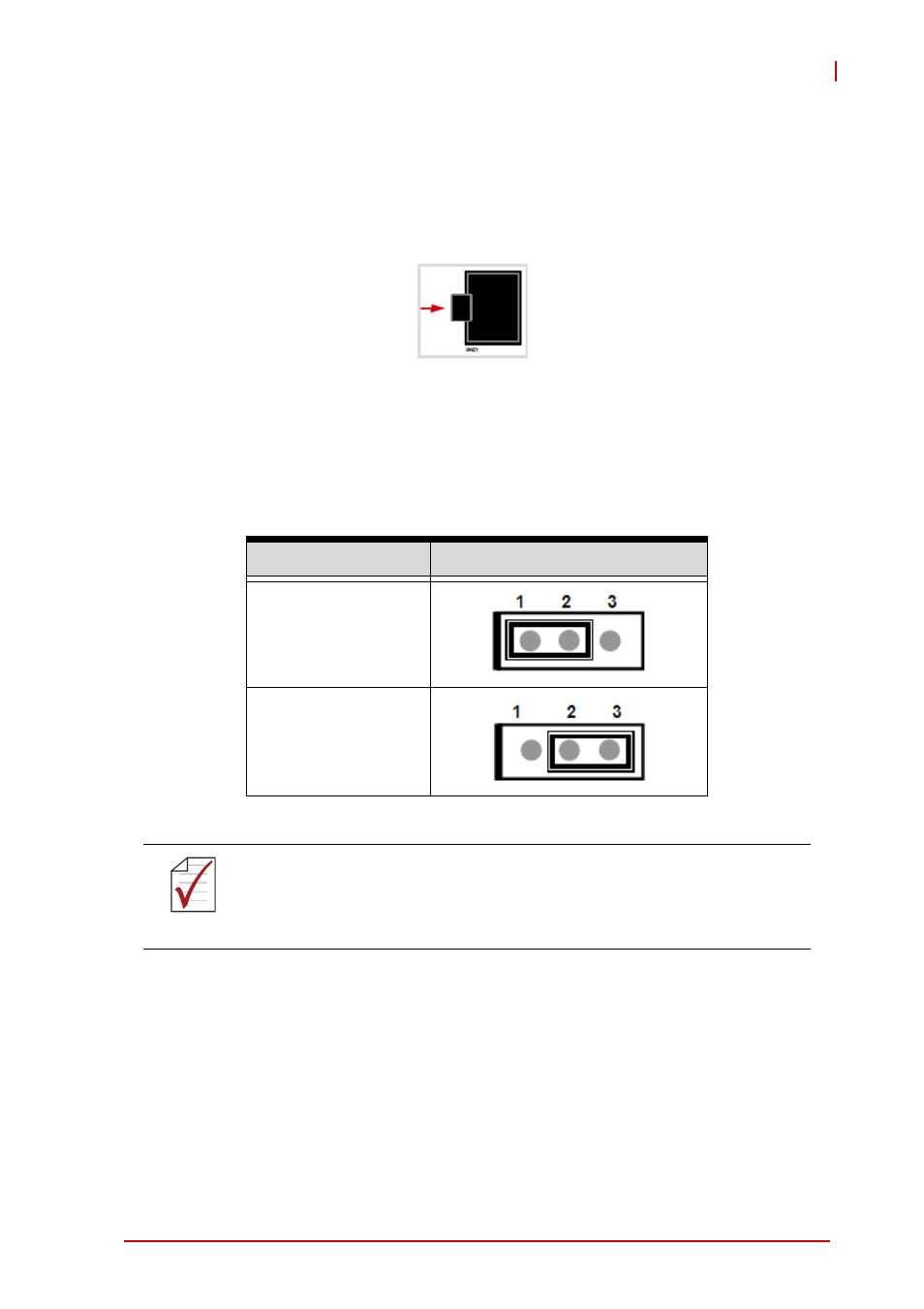

Clear CMOS Switch (SW9)

The cPCI-6965 series comes with a Clear CMOS switch to
reset the CMOS values to default. Press the Switch SW9
located near the J1 connector to clear the CMOS.

PMC V(I/O) Select Jumper (JPX1)

JPX1 is a three pin jumper for +3.3V or 5V PMC VIO signaling
selection.

Table 4-20: PMC V(I/O) Select Jumper Settings

Status

JPX1

3.3V (Default)

NOTE:

Pin 1 of JPX1 is indicated by the thicker line printed on the
PCB.
