30 Board Interfaces
4.7 cPCI-R6000-965D/6000D-L RTM Board Layout

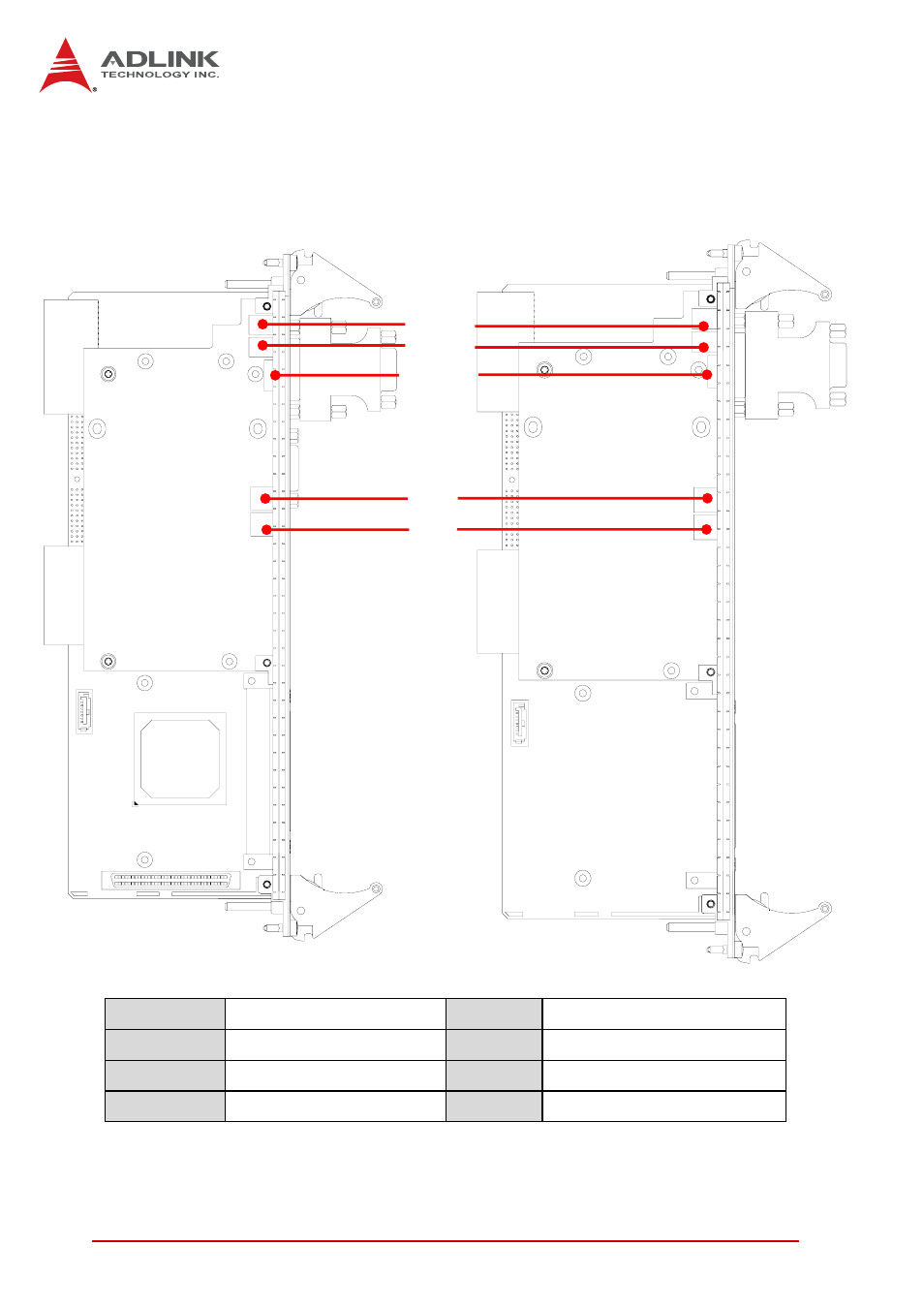

Figure 4-7: cPCI-R6000-965D, cPCI-R6000D-L Board Layout
CN18/19-R USB ports CN12-R External SCSI connector
CN11-R PS/2 KB/MS port CN5-R Internal SCSI connector
CN1-R SATA port (7-pin) U31-R SCSI controller
PH1 Mic-in PH2 Line-out
ʳ ʳ ʳ ʳ
CN5-R
U31-R
CN1-R
CN12-R
CN1-R
CN19-R
CN18-R
CN11-R
PH2
PH1
cPCI-R6000-965D cPCI-R6000D-L
