Acrosser ACE-MINI - Manual (Page 31)

Revision: 1.0
31

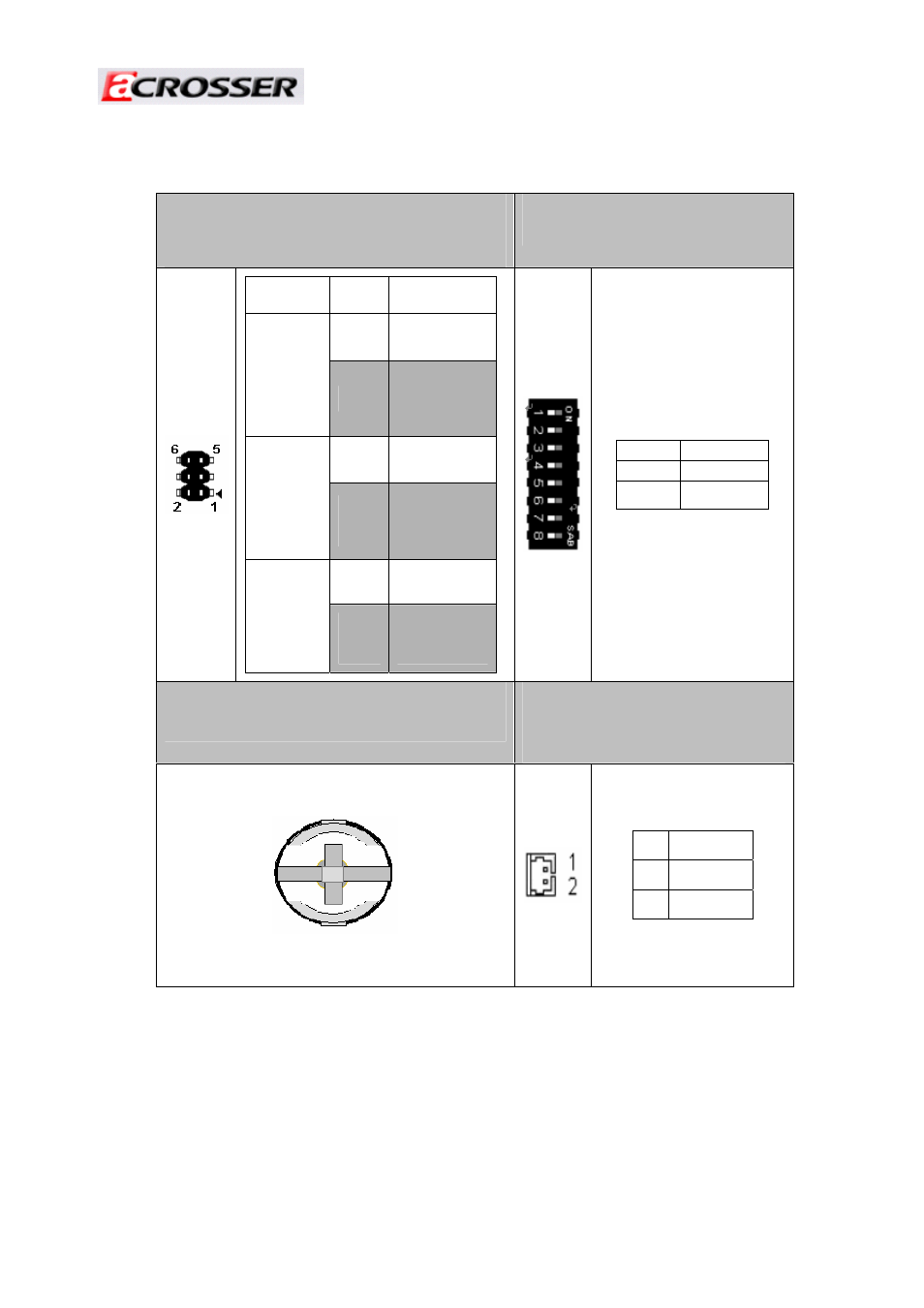

3.3.2 Components and Jumps Setting List
1. JP6
Bill enable, Coin enable and Hopper
sensor pre-set header. 2. SW4
Intrusion log switch.
Connection State description
OPEN preset is “Low”
1-2
(BILL)
CLOSE
preset is “High”
(default)
OPEN preset is “Low”
3-4
(COIN)
CLOSE preset is “High”
(default)
OPEN preset is “Low”
5-6
(HOPPER)
CLOSE preset is “High”
(default)
State descri.
ON GND (Low)
OFF +3.3V (High)
3. U3
*
i-Button holder.
4. BAT1
*
Rechargeable battery
connector.
Pin description
1 +4.2V
2 GND
