3xLOGIC’s VIGIL Client - Users Guide Page 86
Doc# 12031914

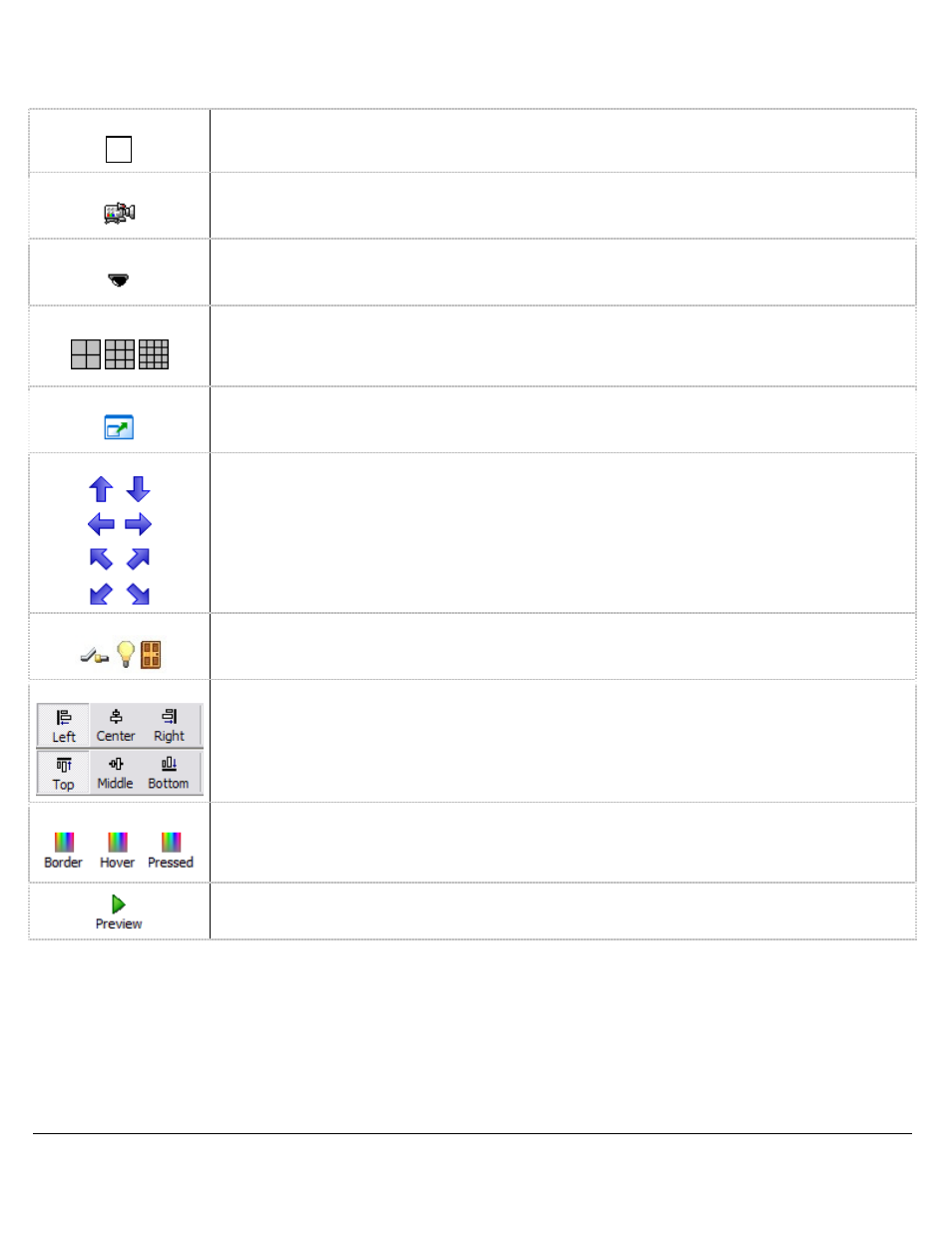

15.1 Site Map Designer Icons and Buttons
Hot Spot
With this icon selected, drag a box on the site map to define a new hot spot. To delete a hot spot,
select the hot spot you wish to remove and click the Delete key.
Fixed Camera Select an existing hot spot on the sitemap and then click the icon or drag a box with the icon
selected to place a fixed camera on the site map. When setting up these cameras, specify the
appropriate remote host and camera number in the control settings.
Dome (PTZ) Camera Select an existing hot spot on the sitemap and then click the icon or drag a box with the icon
selected to place a pan/tilt/zoom camera on the site map. When setting up these cameras,
specify the appropriate remote host and camera number in the control settings.
Multi-Camera Grid
Select an existing hot spot on the sitemap and then click the icon or drag a box with the icon
selected to place an icon to link to 4, 9, or 16 camera grid on the server Live screen. When
setting up these cameras, specify the appropriate remote host and set the camera number to 0 in
the control settings.
Map Link
Select an existing hot spot on the sitemap and then click the icon or drag a box with the icon
selected to place a map link icon.
Directional
Select an existing hot spot on the sitemap and then click the icon or drag a box with the icon
selected to place a directional icon on the site map. For example, can be used to provide
directional links to adjacent maps.
Relays Select an existing hot spot on the sitemap and then click the icon or drag a box with the icon
selected to place a relay on the site map. It provides a toggle for relays on the site map. It is also
polled every 5 seconds for its current state.
Alignment
Select a hot spot and then use a combination of the horizontal and vertical alignments to move
the icon into any position within the hot spot.
Color Use these buttons to change the default colors of the hot spot borders for each state (normal,
mouse over, mouse click).
Note: These changes affect all hot spots on the site map.
Click the Preview button to view the site map in runtime mode.
