3xLOGIC’s
Advanced Playback Controls
Click the button on a Playback Window to expand the Advanced Features Controls. If the button is not
visible, drag the Playback Window larger to display all buttons.

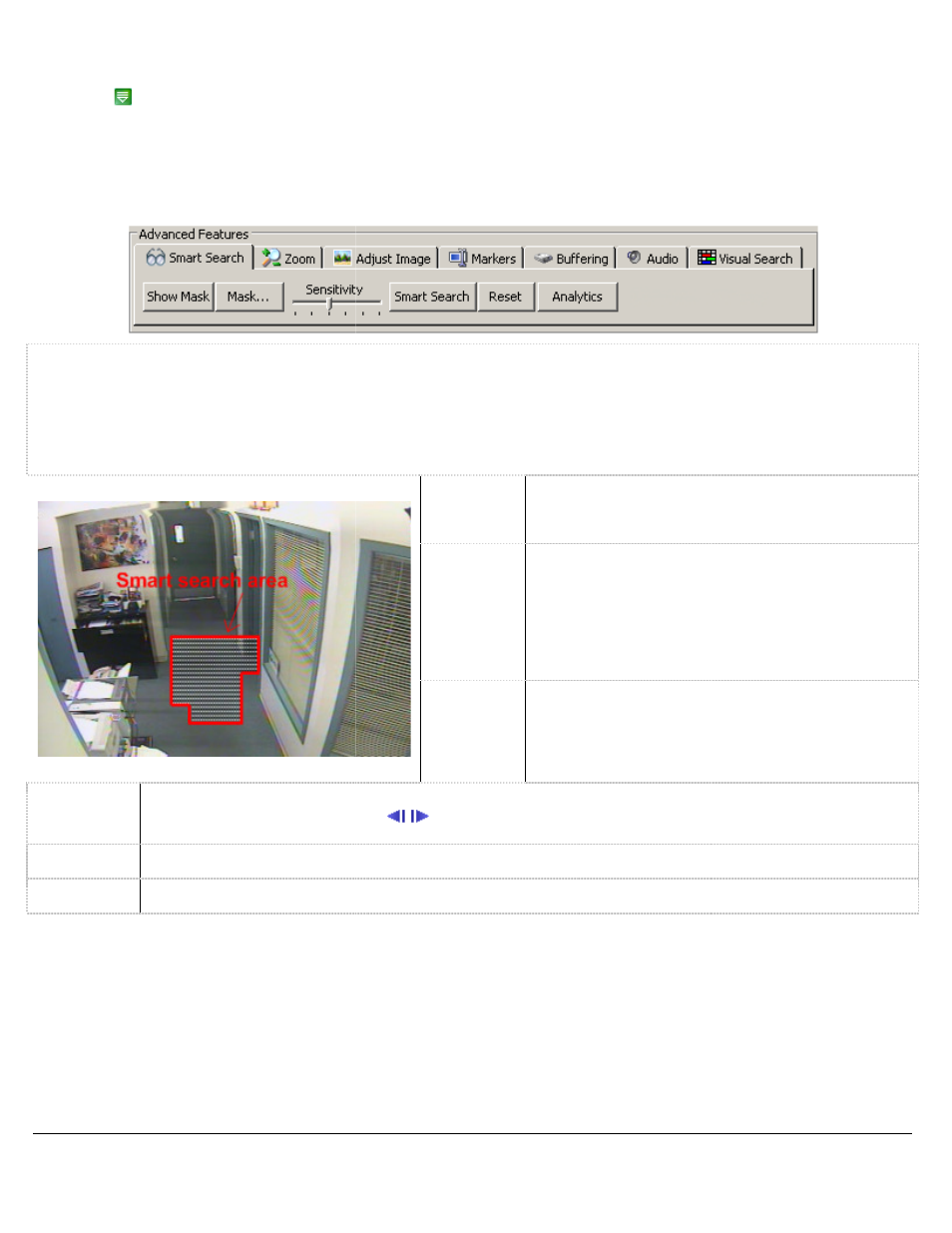

Smart Search Tab
The Smart Search feature refines the loaded v
region.
To perform a Smart Search, you must first define or “mask” a motion detection region. To do this, click
Mask and draw on the playback image. Any time a clear area is clicked on, the mask is expanded.
Alternatively, when a masked area is clicked on, th
perform the search. Once the search is complete, only video frames that contain motion in the masked region
will be loaded for playback. Note: If there is more than one masked region (i.e. two or more di
masks), the Smart Search will load video frames that contain motion in any one, not all, of the regions.
Smart
Search
Performs the Smart Search. Video frames that do not contain motion in the masked regions are removed
from the loaded footage. Use the
Reset Removes all Smart Search masks and restores the originally loaded footage.
Analytics Displays a menu where Video Analytics information can be overlaid on the playback footage.
