CONNECTIONS
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is
120 V AC. Check that the rated voltage matches your local
voltage.
IMPORTANT
• Connect the speakers, antennas, and all optional equipment
first. Then connect the AC cord in the end,
• The front speaker marked R on the rear is the right speaker,
and the marked L is the left speaker.

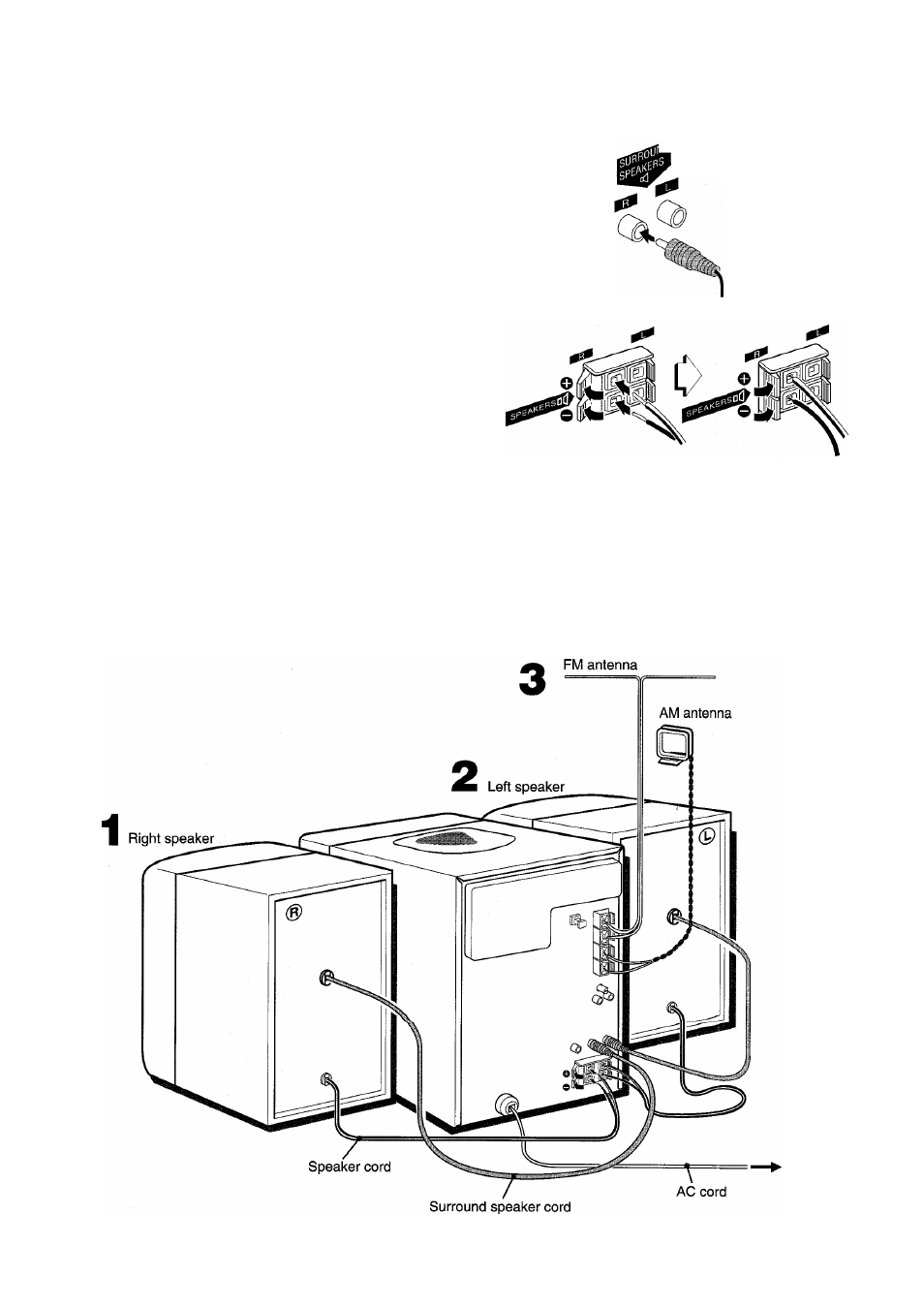

1 Connect the right speaker to the main unit.
(D
Connect the surround speaker cord to the SURROUND
SPEAKERS R terminal.
SBf
®
Connect the speaker cord to the SPEAKERS R terminals.
The speaker cord with the white stripe should be connected
to the
O
terminal and the black cord to the
O
terminal.
2 Connect the ieft speaker to the main unit.
Connect the surround speaker cord to the SURROUND
SPEAKERS L terminal, and speaker cord to the SPEAKERS
L terminals in the same manner as step 1.
ENGLISH
